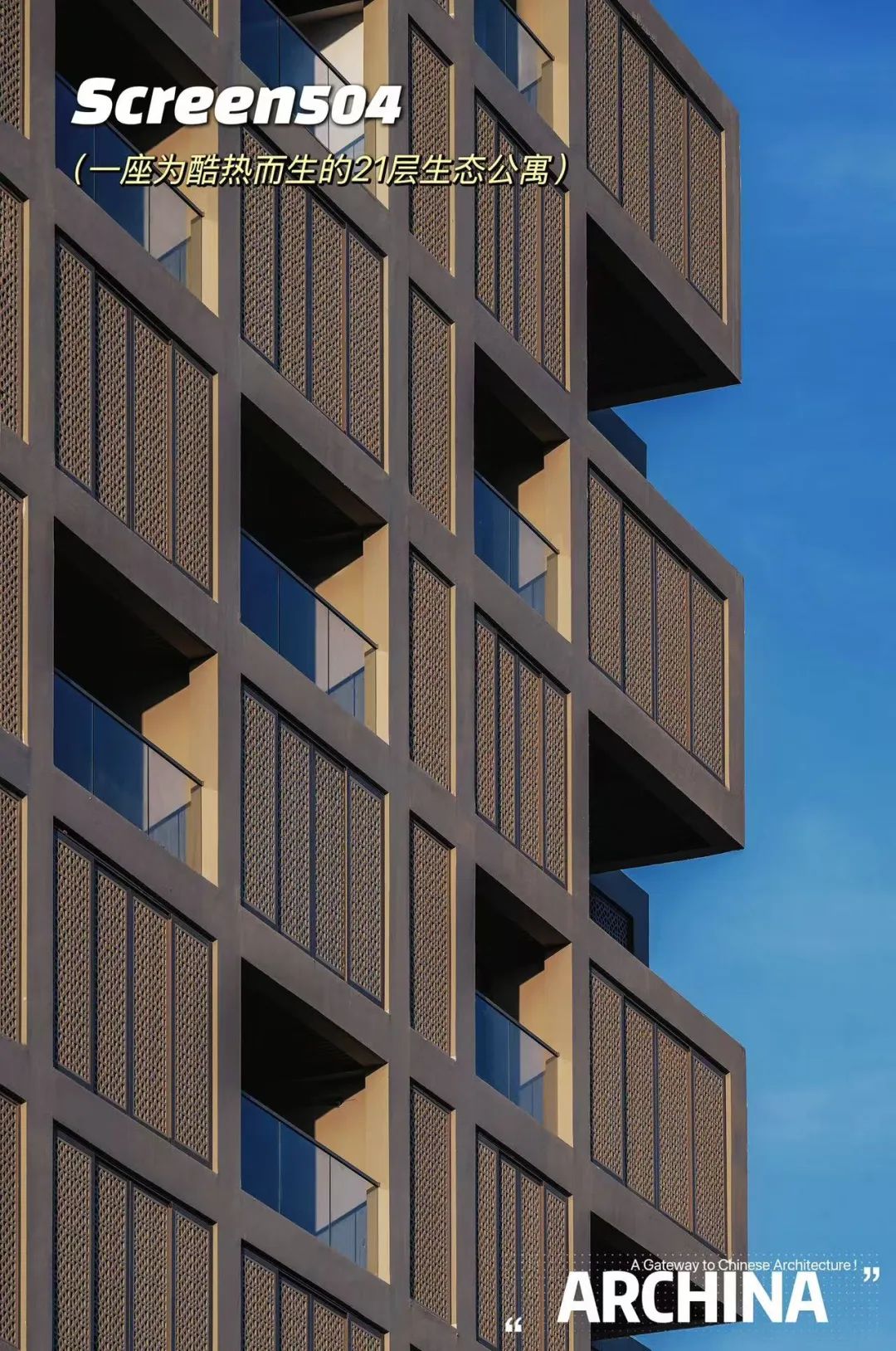

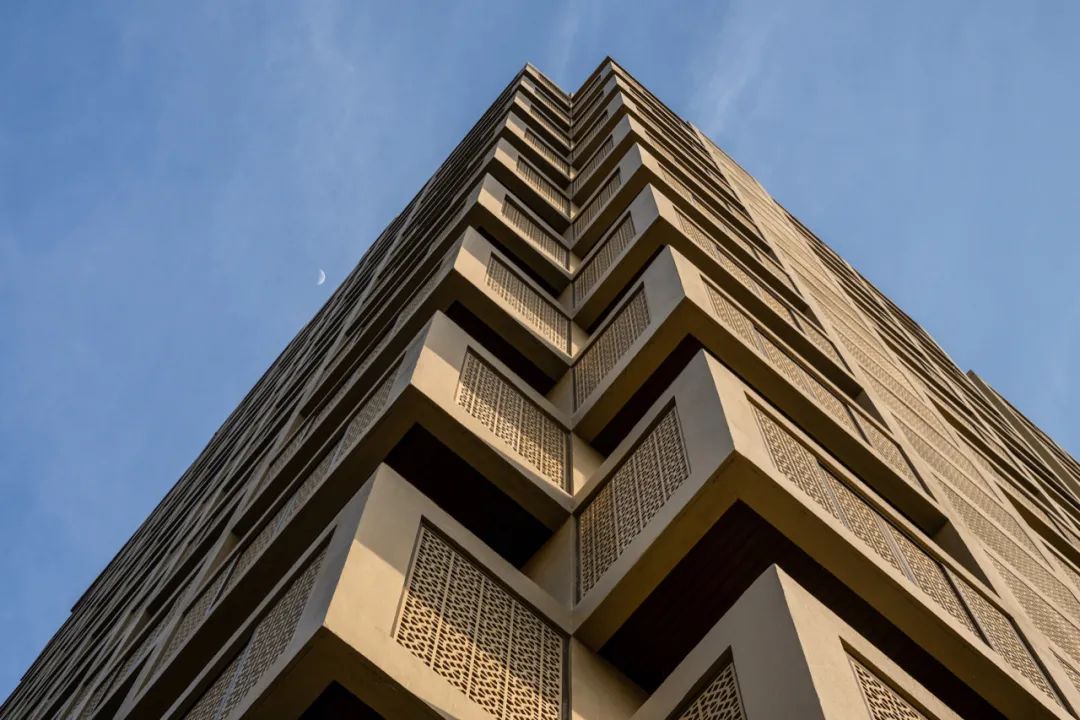

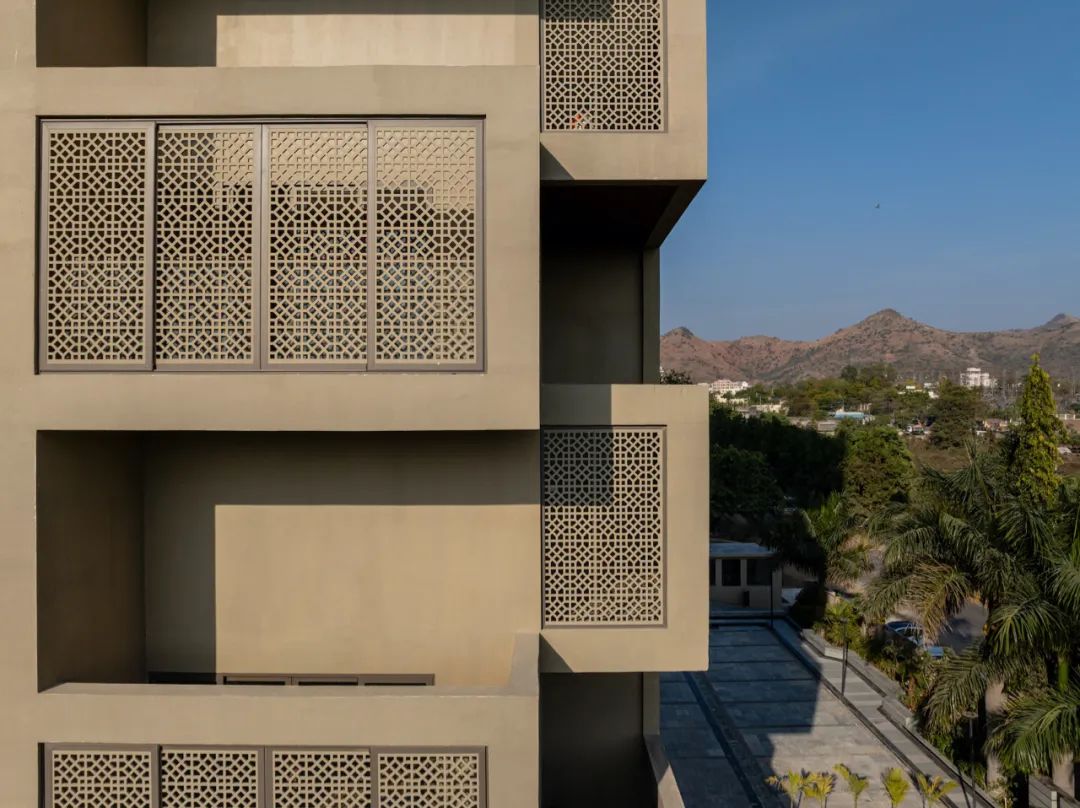

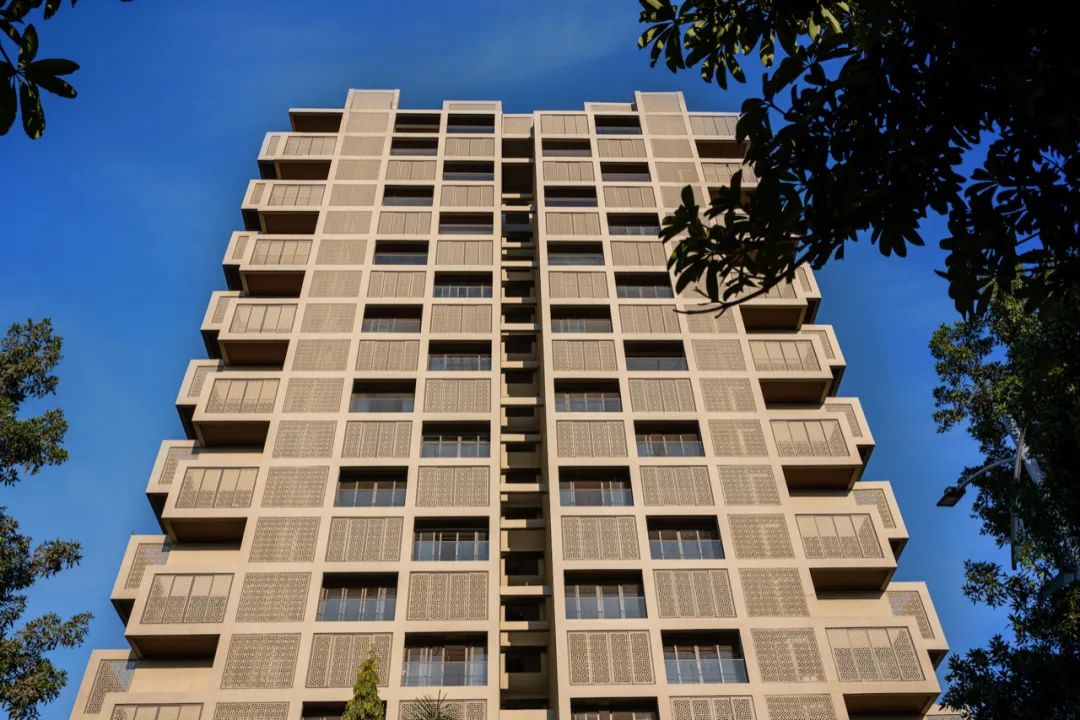

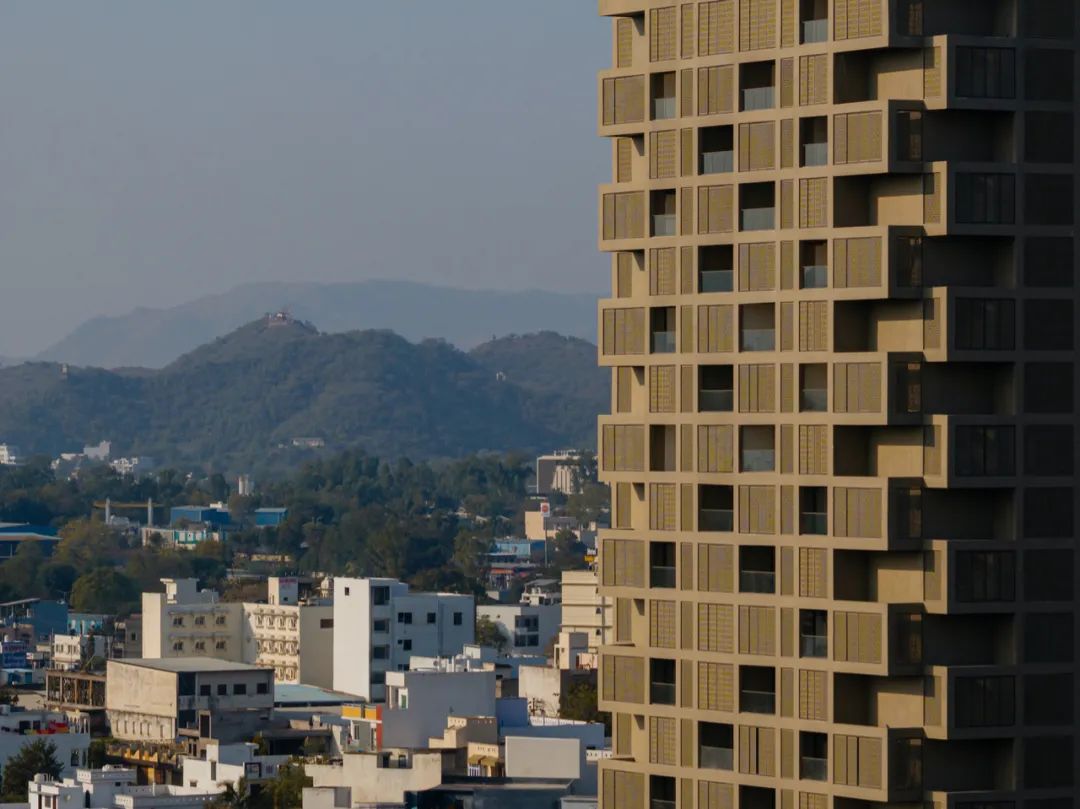

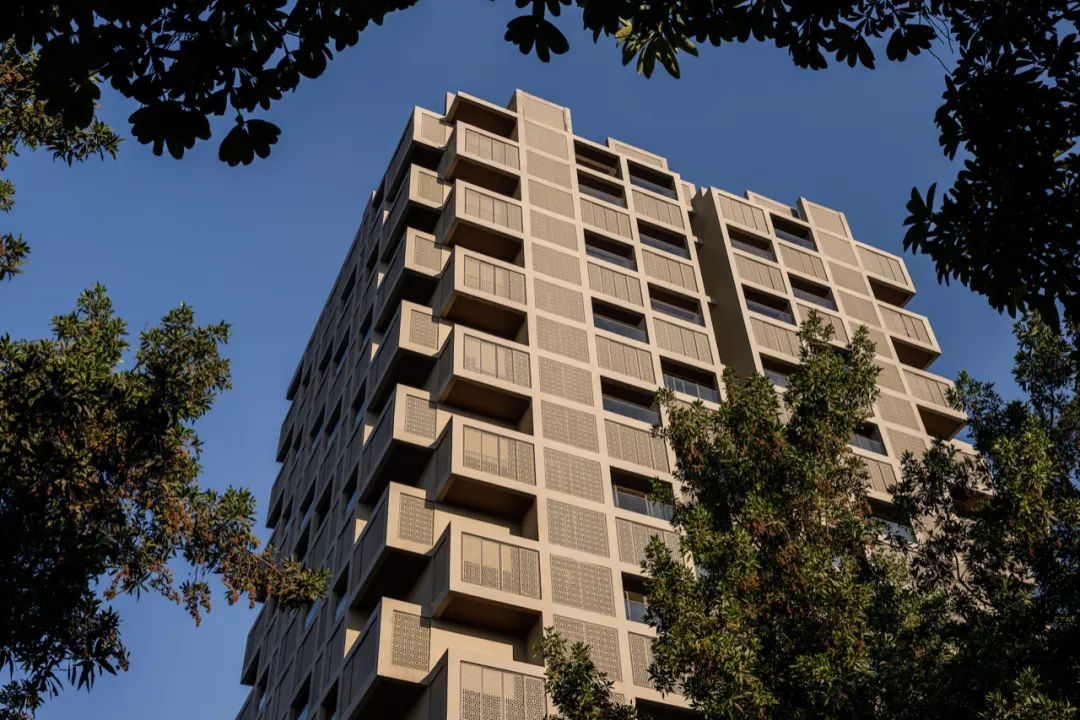

Screen 504 is a 21-storey apartment building with 78 apartments and a total constructed area of 20,000 sqm, located on a 3,690 sqm site in Udaipur, Rajasthan, India. At every level, 4 apartments, each with 4 bedrooms and living spaces, are planned in each quadrant to allow visibility and views of 2 adjacent sides of the surroundings, with hills in the distance in all directions.

该地区的传统建筑可以追溯到16和17世纪，有许多突出的带屏风的阳台空间设计，以应对夏季高达35°C至48°C的酷热，同时提供隐私。

Traditional architecture in the region dating back to the 16th and 17th centuries has multiple examples of projected screened balcony spaces to combat the excessive heat of the summer months, which can vary from 35° to 48°C , providing privacy simultaneously.

借鉴这一传统建筑元素，每套公寓的每个房间前都设计了带屏风的露台和开放式露台空间，以减少热量吸收，并提供室内与室外之间的过渡空间。

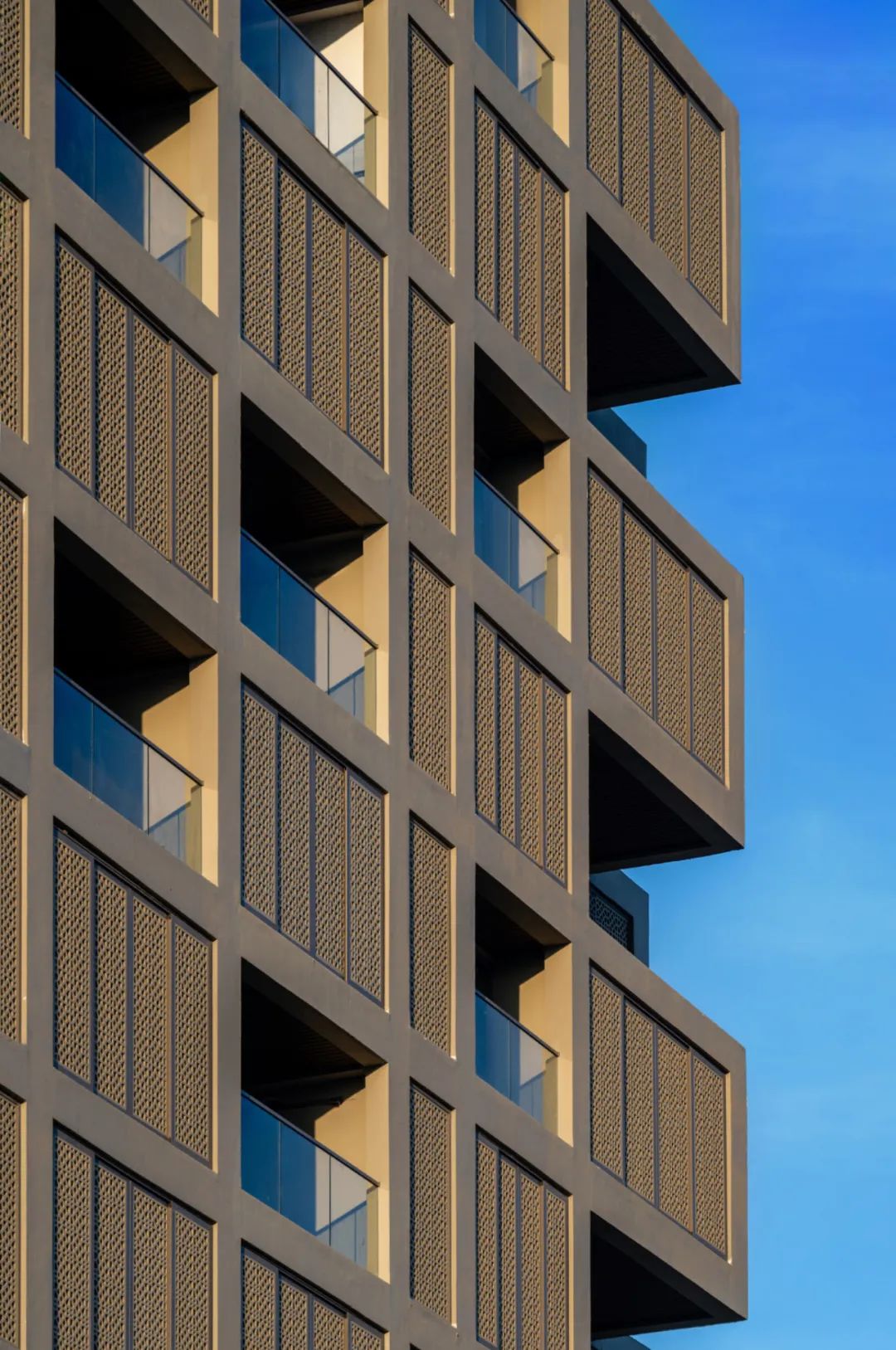

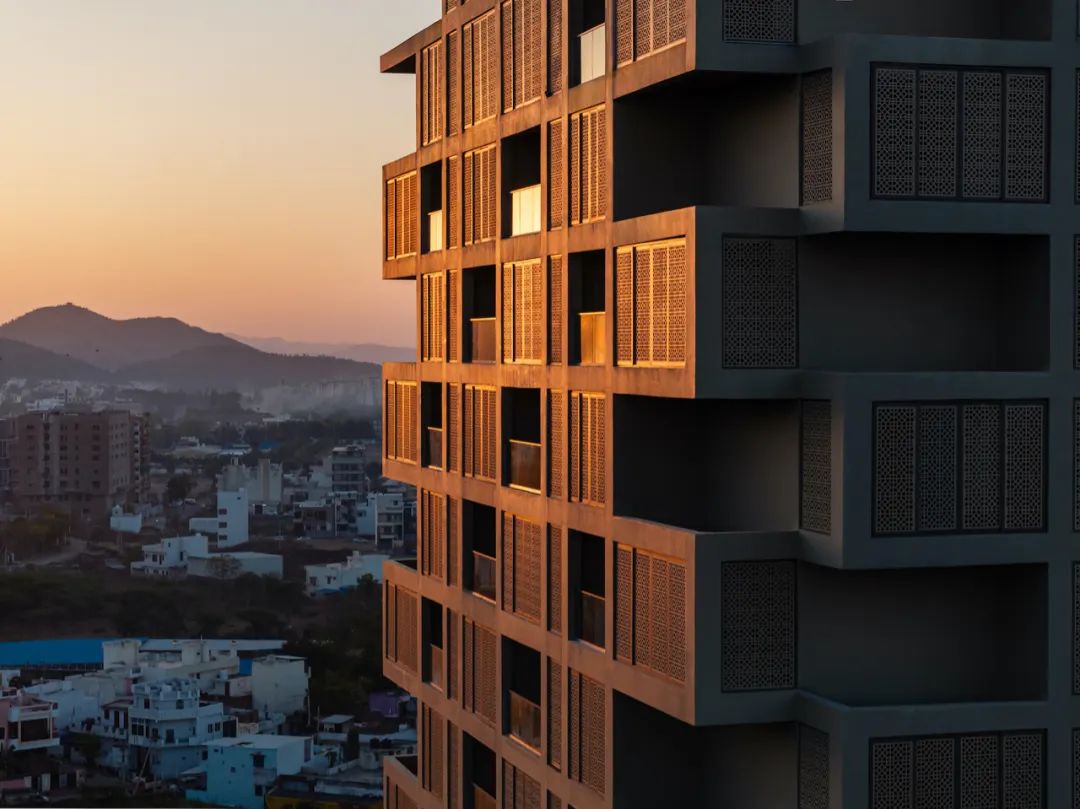

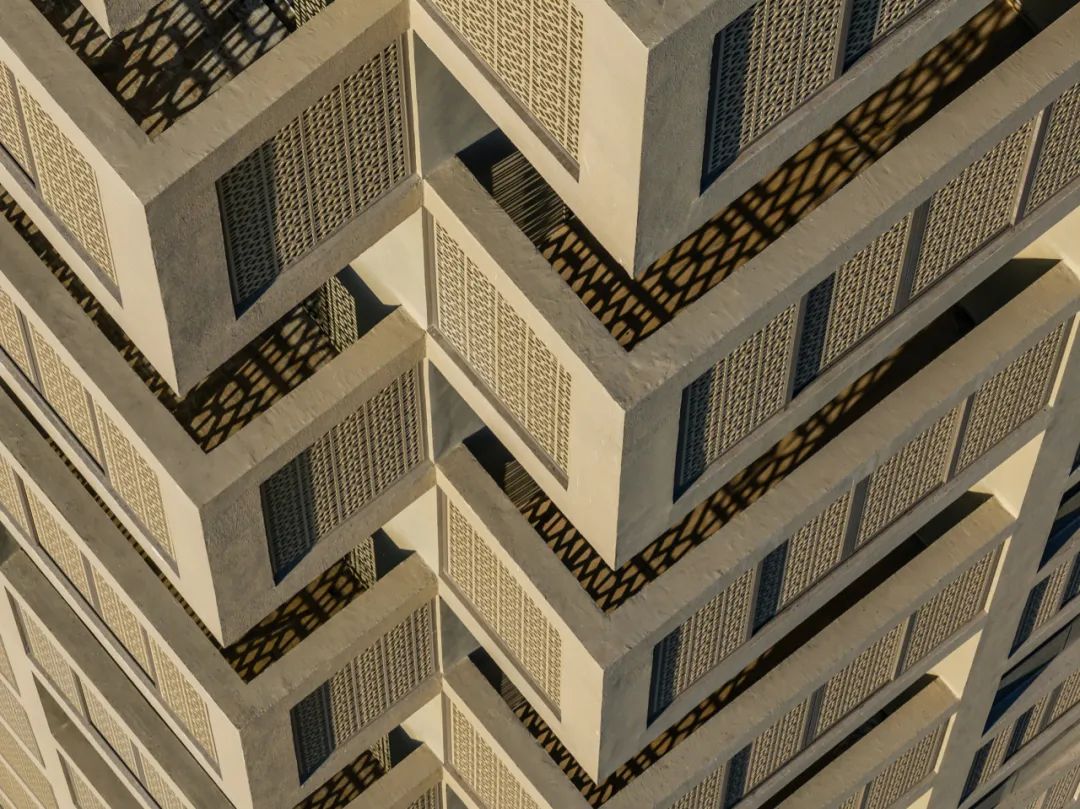

Taking a cue from this element of traditional architecture, a mix of screened decks and open deck spaces front each room of each apartment to mitigate heat gain and provide transitional spaces between the indoors and the outdoors.

每套公寓有5个阳台空间，分别面向客厅和4间卧室。其中一些是开放式的，另一些则采用传统图案的滑动屏风进行遮挡。带屏风的露台可以部分打开。每套公寓中有一个露台高达20英尺。居民可以选择使用单层10英尺高的露台，或20英尺高的露台，这些露台可以根据天气完全开放、部分开放或完全封闭。

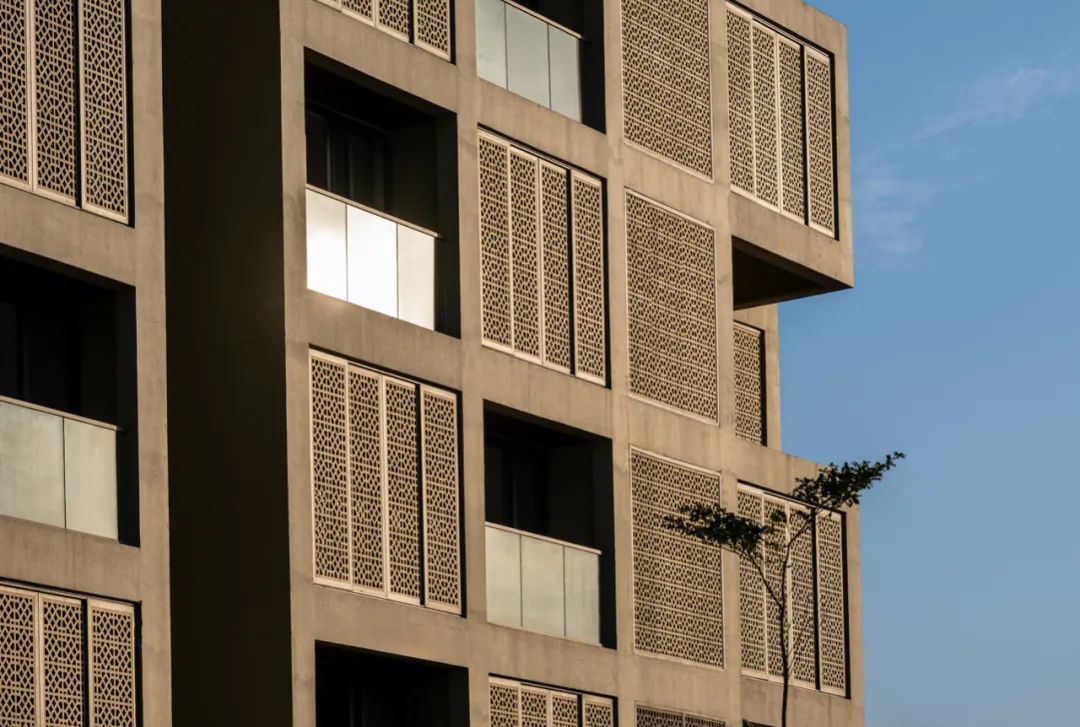

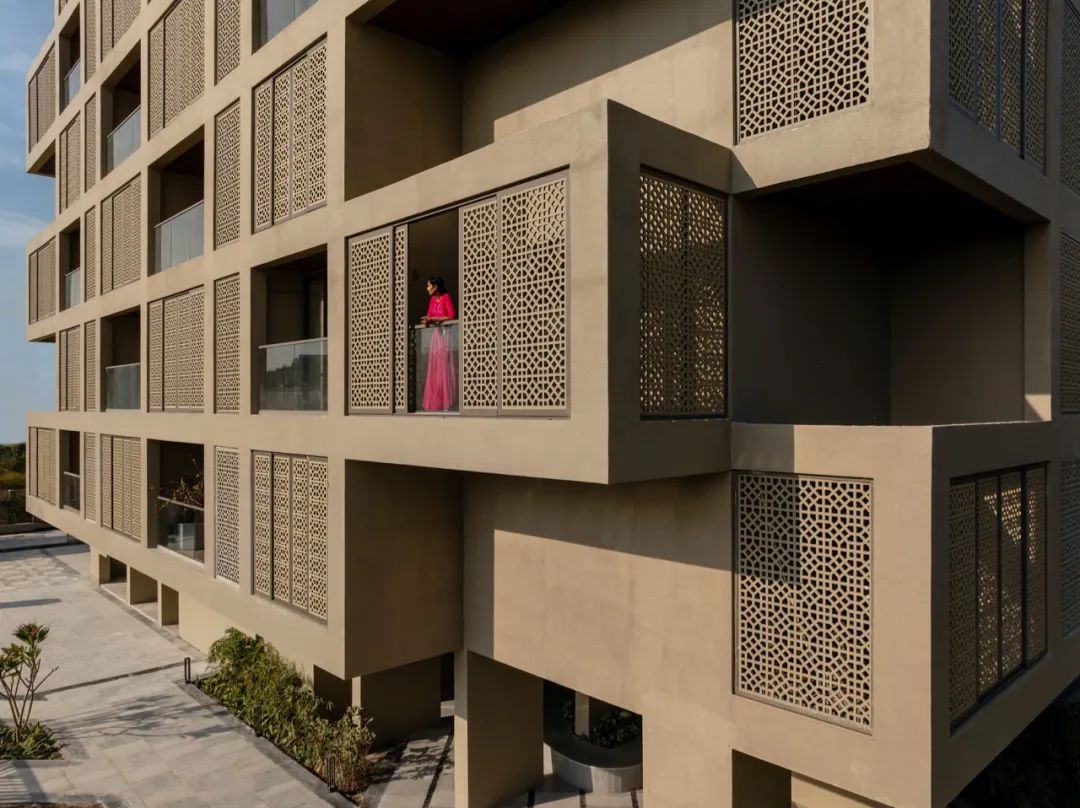

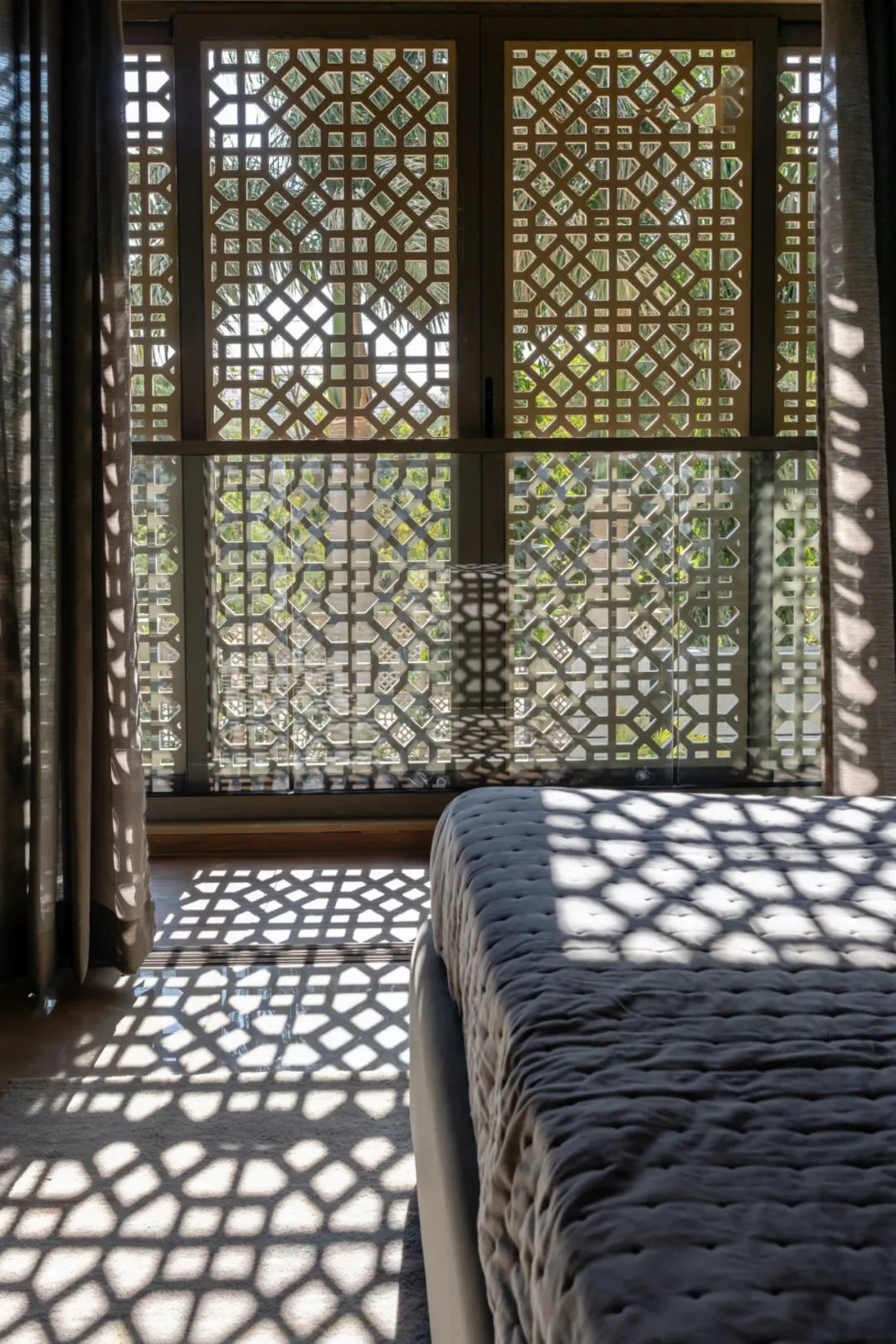

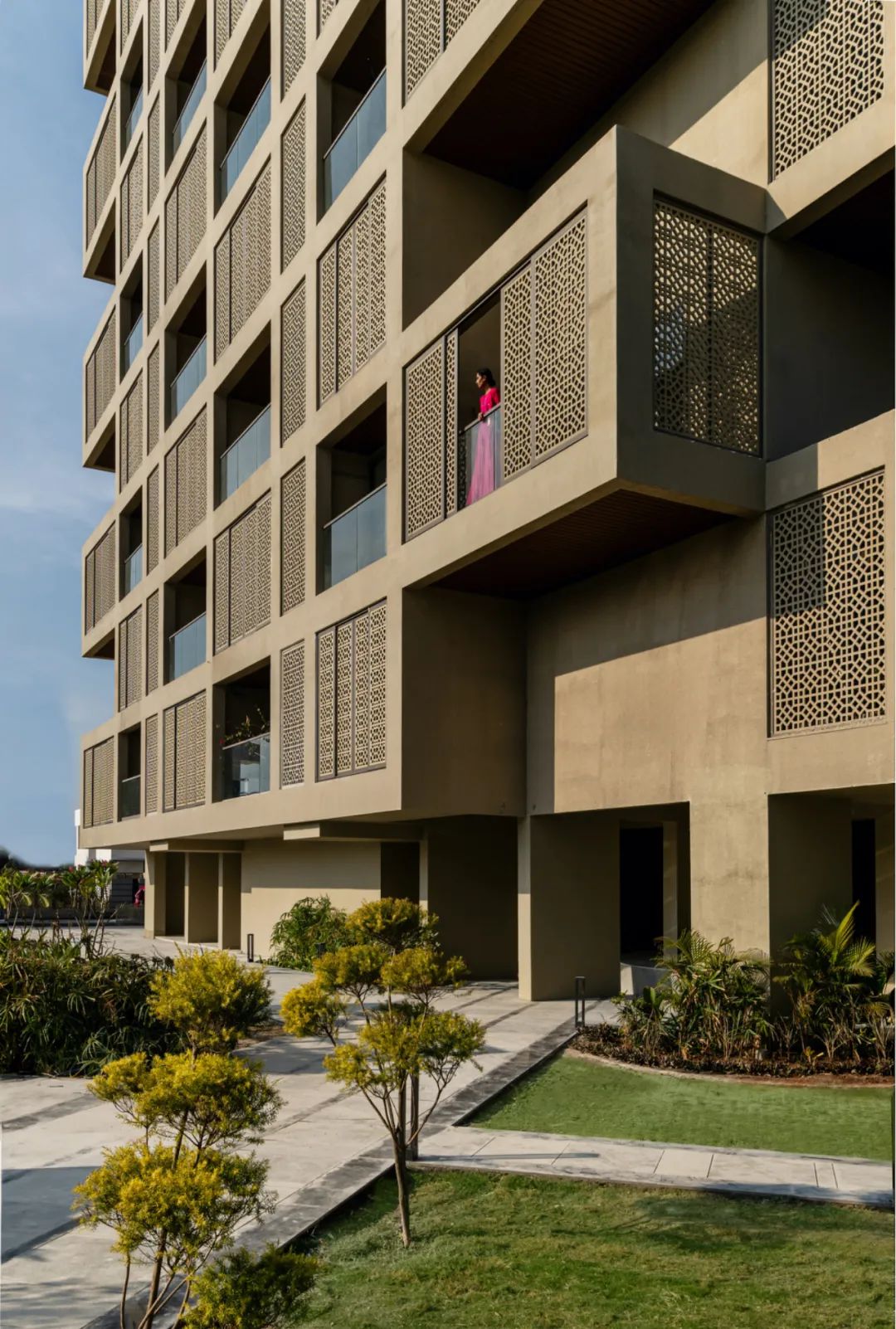

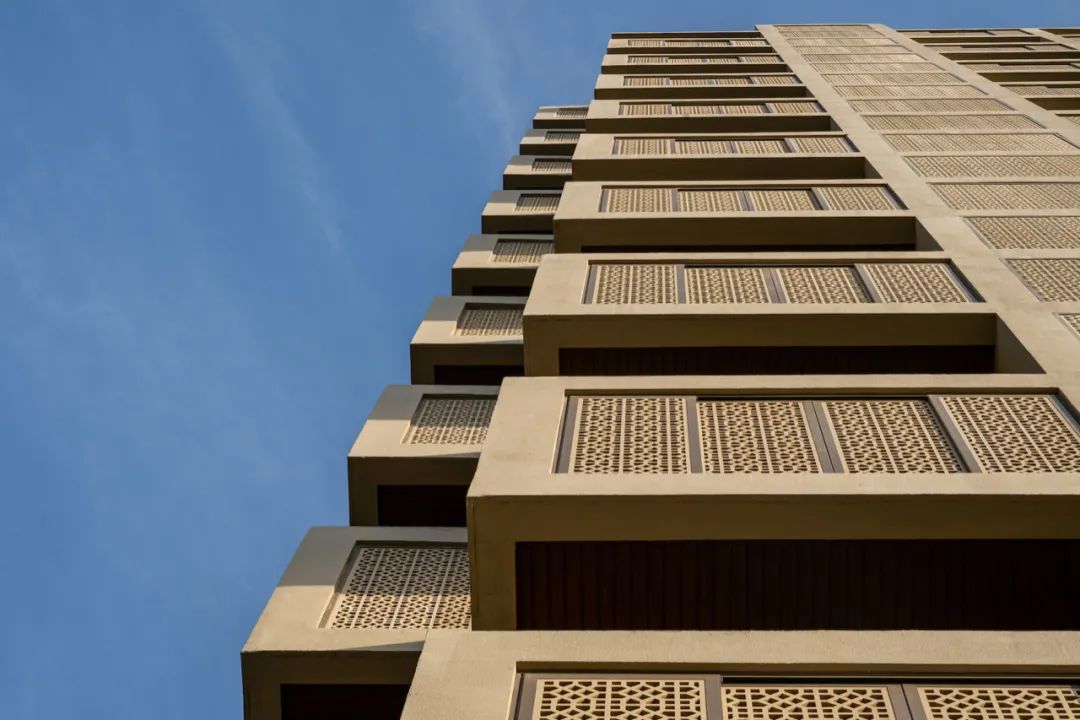

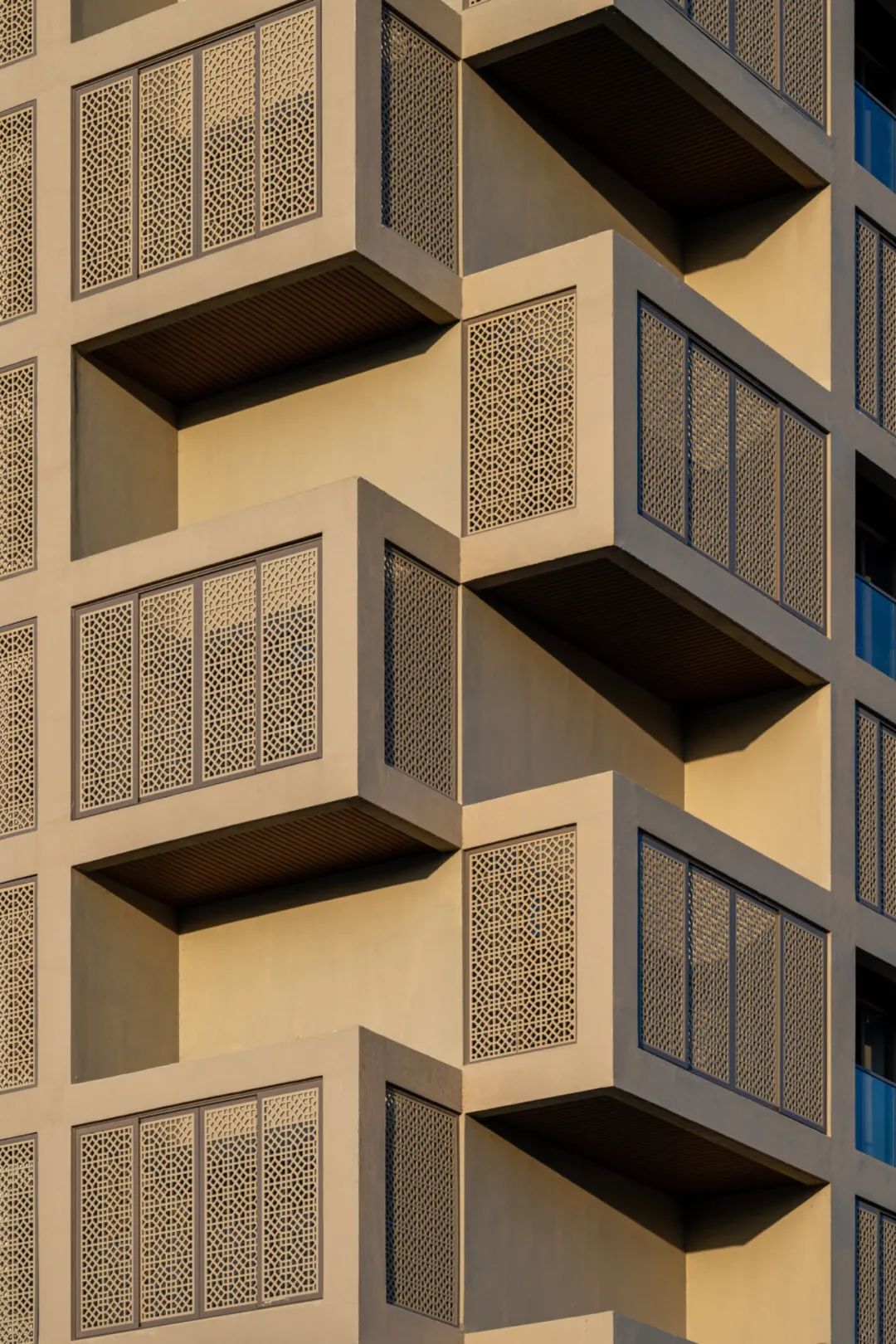

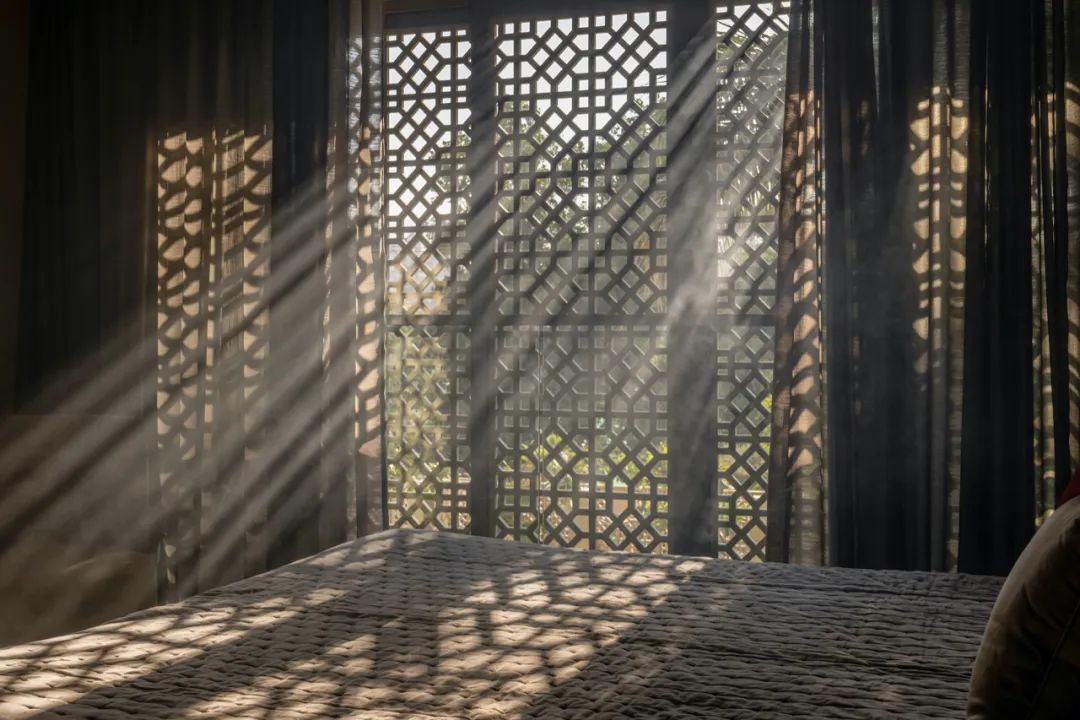

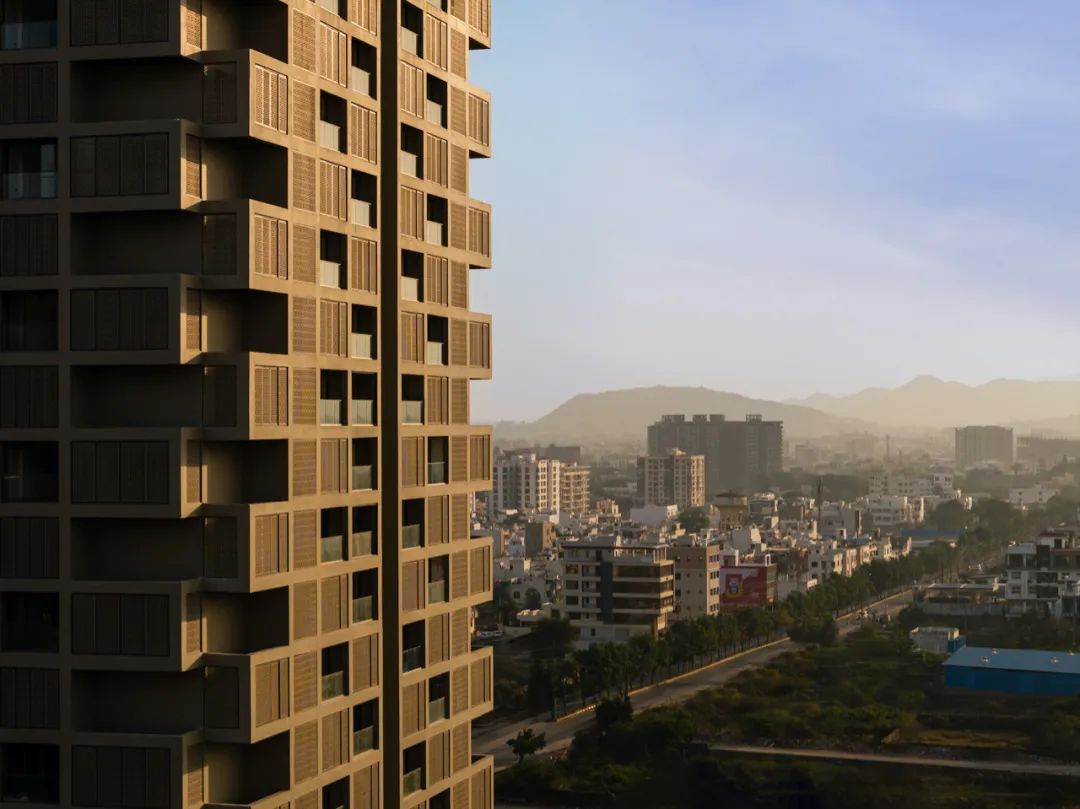

Each apartment has 5 balcony spaces fronting the living room and the 4 bedrooms. Some of these are open, and some are screened with sliding screens perforated with a traditional pattern. The screened decks can be opened up partially. One of the decks in each apartment is 20 feet high. The residents have the option of using single height 10 feet high decks, or 20 feet high decks, which can be completely open, partially open, or completely screened, depending on the weather.

根据客户的要求和当地规定，这块3,690平方米的土地上允许建造的总面积为20,000平方米。由于70米的高度限制和四周必须保留14米的开放空间，建筑平面设计为36米×30米，高度为70米。

Based upon the client's brief and the governing rules, a total area of 20,000 sqm is permissible on the plot of 3,690 sqm. The height restriction of 70 m and the mandatory 14m open spaces on all sides necessitated a building block of 36m X 30m in plan with a height of 70m.

在这些限制条件下，公寓设计尽量减少内部走廊空间，所有房间都面向外部景观，确保自然光线和通风，并俯瞰山景。

Within these restrictive parameters, the apartments are designed with minimal internal circulation spaces and with all rooms facing the external views, facilitating natural light and ventilation throughout, overlooking the hills.

社区空间包括健身房、游泳池、社区大厅和游戏室，位于地面层和带有屋顶花园的屋顶露台。停车场规划在单层地下室。

Community spaces including a gym, swimming pool, community hall, and games room are located at the ground level and the rooftop terrace with a rooftop garden. Parking areas are planned in a single basement.

所有阳台和屋顶露台的雨水都集中排入雨水收集池。此外，水被回收并用于园艺。这些措施减少了对外部供水的需求。所有内墙均采用粉煤灰砖建造。场地周边的围墙和景观空间内使用了当地采购的砂岩。所有建筑工人均来自当地。这些因素共同使建筑具有可持续性。

The entire perimeter of balconies and the rooftop terraces are collectively drained to a rain water harvesting tank. In addition, water is recycled and reused for gardening. These measures serve to reduce the need for external water supply. All the internal walls are made of fly ash brick. Locally sourced sandstone is used for the perimeter walls of the site and within the landscaped spaces. The entire labor for the construction was sourced locally. Collectively, all of these factors render the building sustainable.

Screen 504 的设计结合了当地的地理和气候条件，借鉴了该地区的传统建筑元素，打造出一座节能的公寓楼，并为所有居民提供了多样化的户外空间。

Screen 504 is designed contextually to the location and climate, taking cues from the traditional architecture of the region, resulting in an apartment building that is energy efficient and offers a variety of different outdoor spaces to all its residents.

技术参数

Technical sheet

Location: Udaipur, Rajasthan, India

Client Name: Mr Ravi Mundra

Completion Date: January 2025

Gross Floor Area: 20000 Sq.M

Site Area: 3,692 SQ.M

Cost:  USD  2300176

Architect: Sanjay Puri Architects

Lead Architects: Ar. Sanjay Puri

Design Team – Prachi Pawar, Pratik Patel

顾问团队

结构顾问：Shalini Gupta and Associates

机电顾问：Resonance MEP Consultants, Udaipur

景观设计：Satatv Design Consultants

照片来源：Vinay Panjwani 先生

Structure consultant –Shalini Gupta and Associates

MEP consultant – Resonance MEP Consultants, Udaipur

Landscape Design–Satatv Design Consultants

Photo credits: Mr.Vinay Panjwani
