华沙商务公园酒店 | FUKSAS

点击收藏 [ 建立属于你自己的在线项目数据库,带你一起进入知识管理时代 ]

项目客户 Client | Swede Center
项目预算 Budget | € 23,000,000

时间 Completed time | 2013
面积 Area | 23000 sqm
结构设计 Structural Consultant | Arcade Polska



Scroll down to view English version


华沙商务公园是一个由7栋建筑物所组成的商务园区,占地超过90,000平方米。园区功能涵盖办公,商业,酒店以及会议中心,并坐拥极其便利的公共交通系统,与连接国际机场以及华沙市中心的Żwirki i Wigury路相邻。




FUKSAS设计的一号楼拥具有多种功能。其是一栋5层楼高的酒店,拥有206间客房,一个能容纳800人的会议中心,一所活动中心,零售业区域,餐厅,咖啡馆,办公区域,以及280个停车位。不同的功能分布在一个位于首层的开放空间周围,通过该接入点可访问不同的区域,其组织方式可根据需要而独立或合并使用。

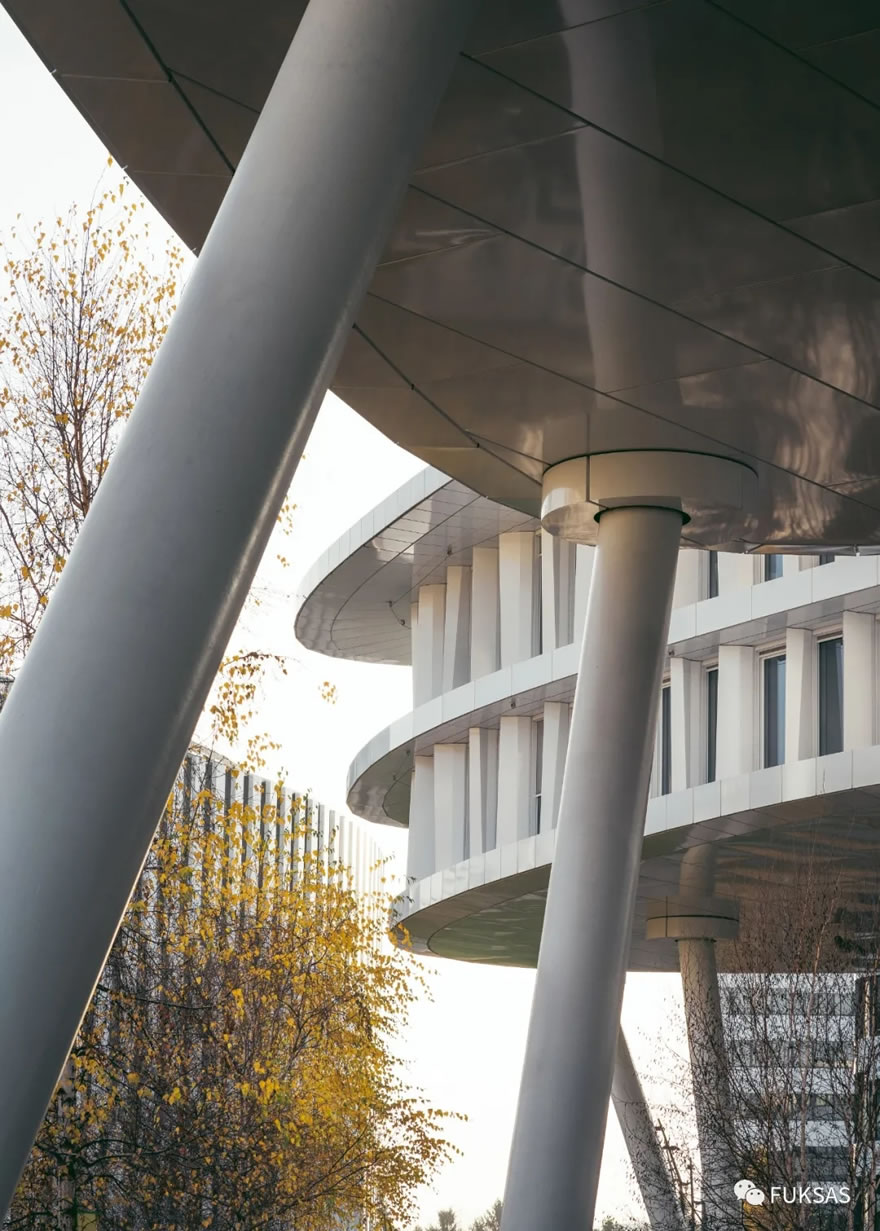

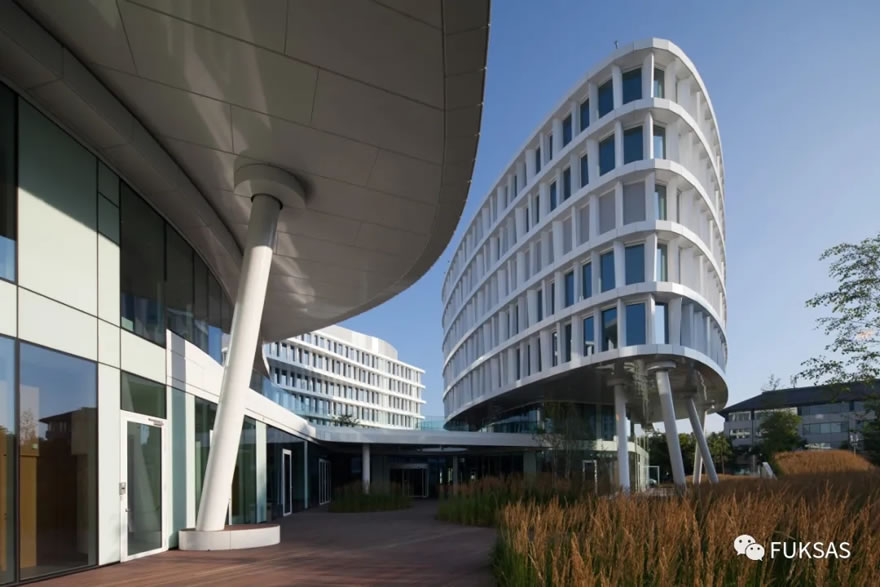

首层外廊 Corridor


位于公园二楼的前开口有一个绿色的大露台,其位于餐厅的前面并可作为酒店及会议中心的活动场地。

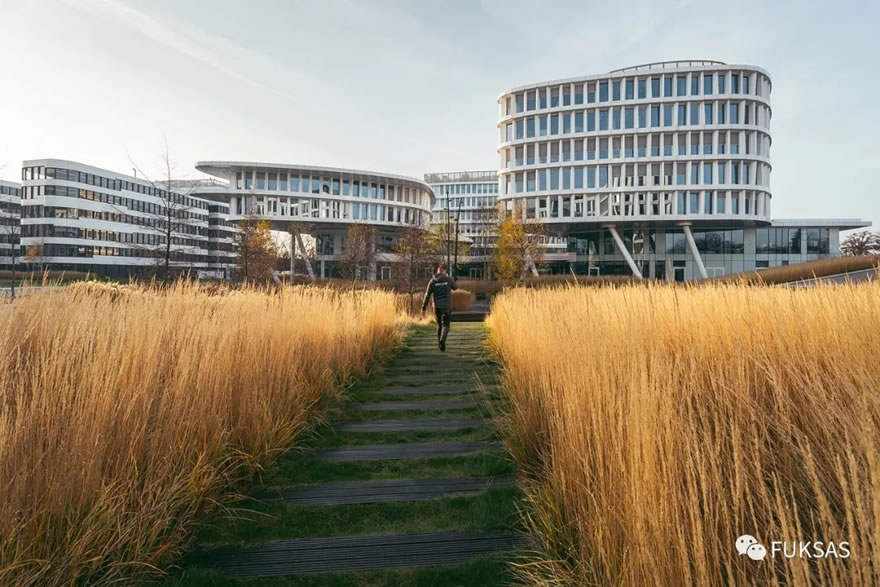

绿色平台 Green terrace


园区内建筑物的最高高度为25米。二楼以上突出的部分作为遮盖物可以减少雨雪对客人及参观者的影响。




雕塑般的体量及张力展现了设计过程中整合不同功能是完成该综合体项目的基本思想。同时,借鉴华沙的城市及周边的景观以及中央Wisniowy花园公园的设计也极为重要。园区内建筑面向道路侧的外立面形体是由直线构成的,而面向公园的外立面形体则较为平滑圆润。

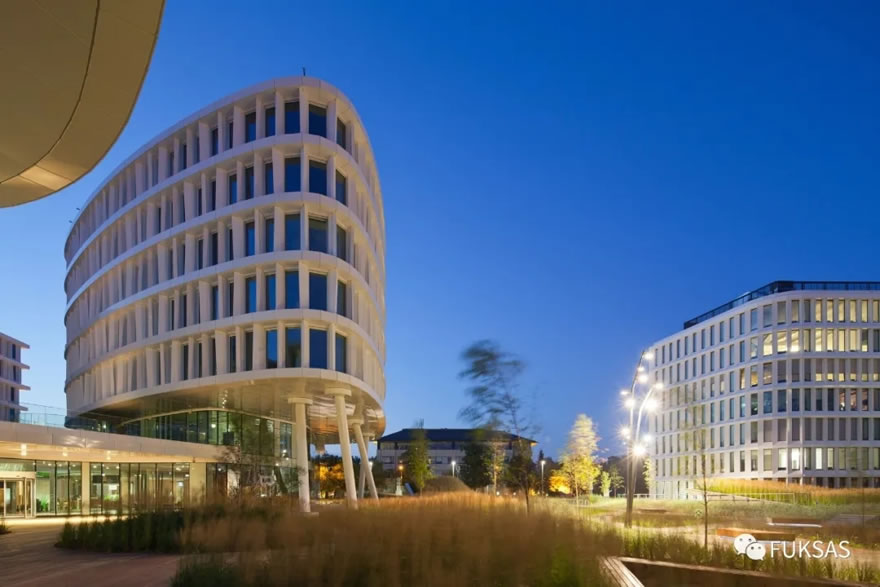

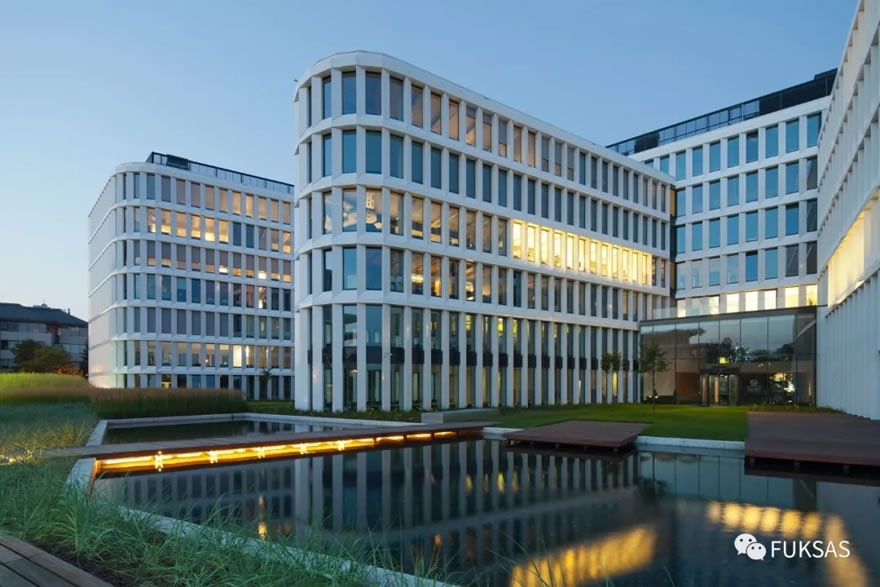

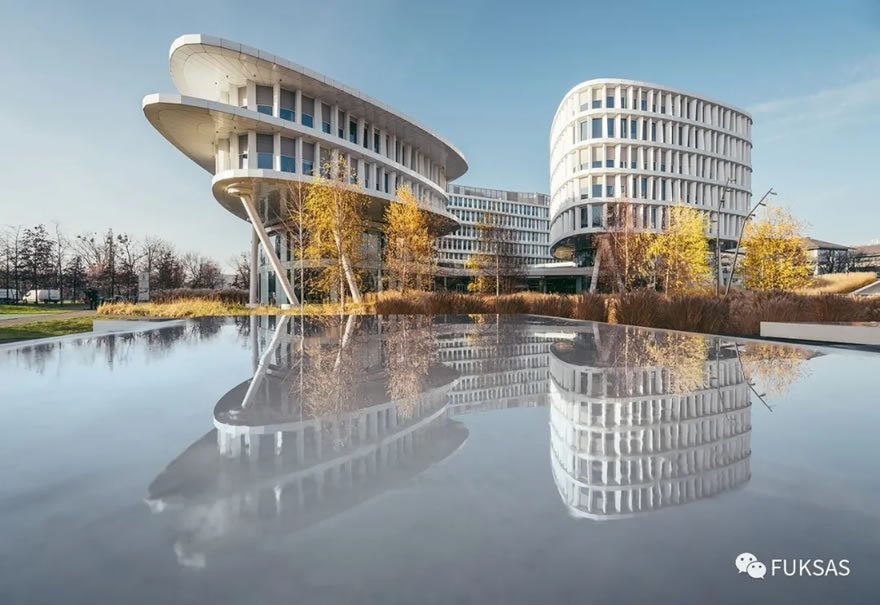

面向公园的外立面 The facades towards the park


The Warszawa Business Garden is a plan for a business park composed of seven buildings housing offices, shops, hotels, and a meeting centre within an area of over 90,000 m2, is situated in close proximity of Żwirki i Wigury Street which links the international airport to the city center of Warsaw. The location provides very convenient access to the public transport facilities.


The Studio Fuksas designed the Building n. 1, which hosts several functions, a hotel with 206 rooms arranged on 5 levels, a Congress Center for about 800 seats, an event Centre, retail areas, a restaurant, a cafè, office spaces and 280 car parks. The different functions are distributed around an open space on the ground floor, nodal point where accessing various areas, organised in such a way that they can be used separately or, as required, merged.


The front opening of the Park on the first floor has a large “green” terrace, located in front of the restaurant and can be used for all events connected to the hotel as the Convention Center.


The max height of the complex is 25 m. The 3 on the 2 upper floors jut below to create a sort of shelter that protects throughout the building guests, visitors or buyers from rain and snow.


A sculptural volumetric strength showing the different functions which had to be integrated in the design process are the basic idea of the complex while taking care about the surrounding aspects of the closer cityscape of Warsaw and the idea of the central Wisniowy Garden Park. The facades towards streets are straight, while the façade lines towards the park are moving slightly.

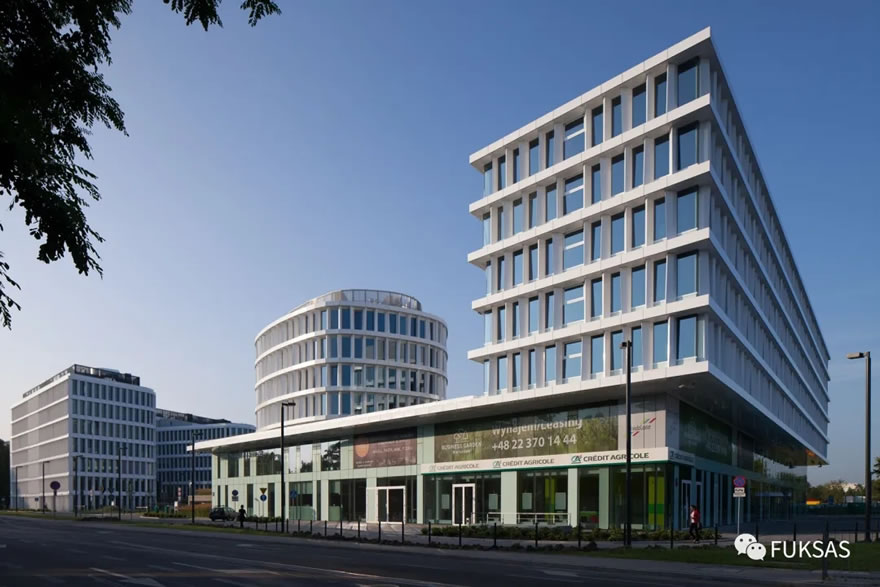

面向道路的立面 Facades towards the street

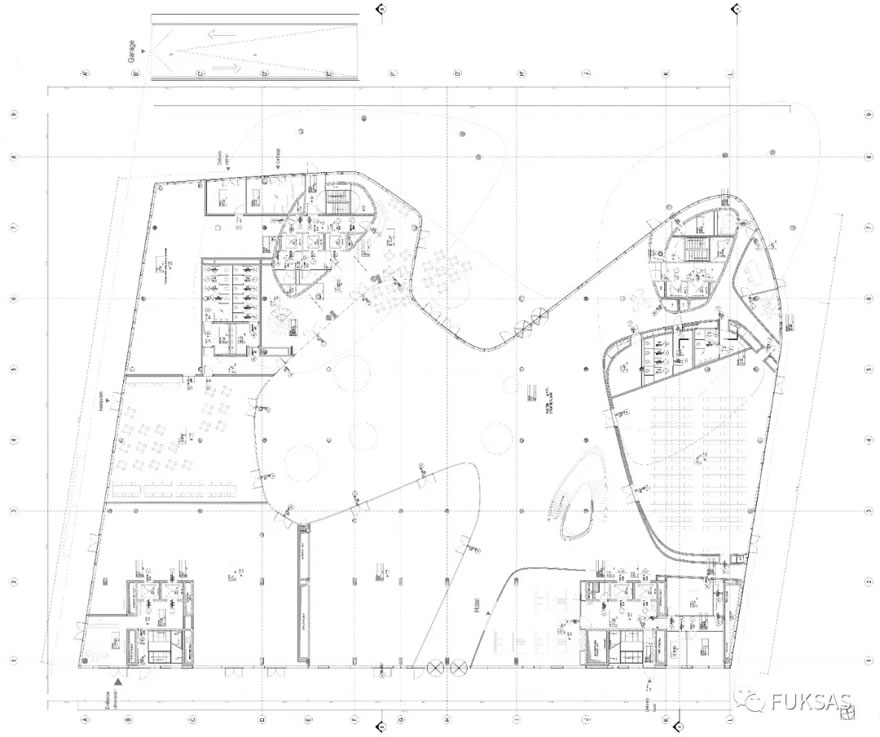

首层平面 Ground floor plan

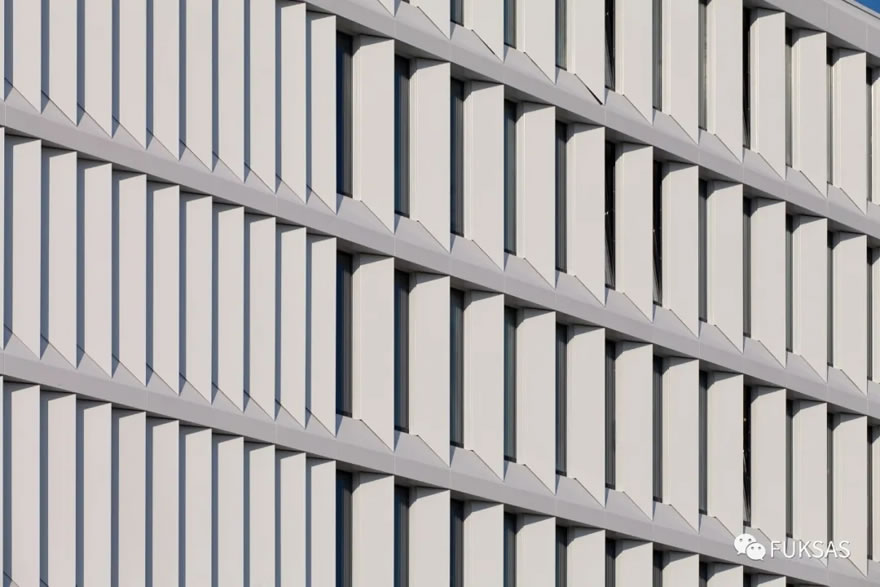

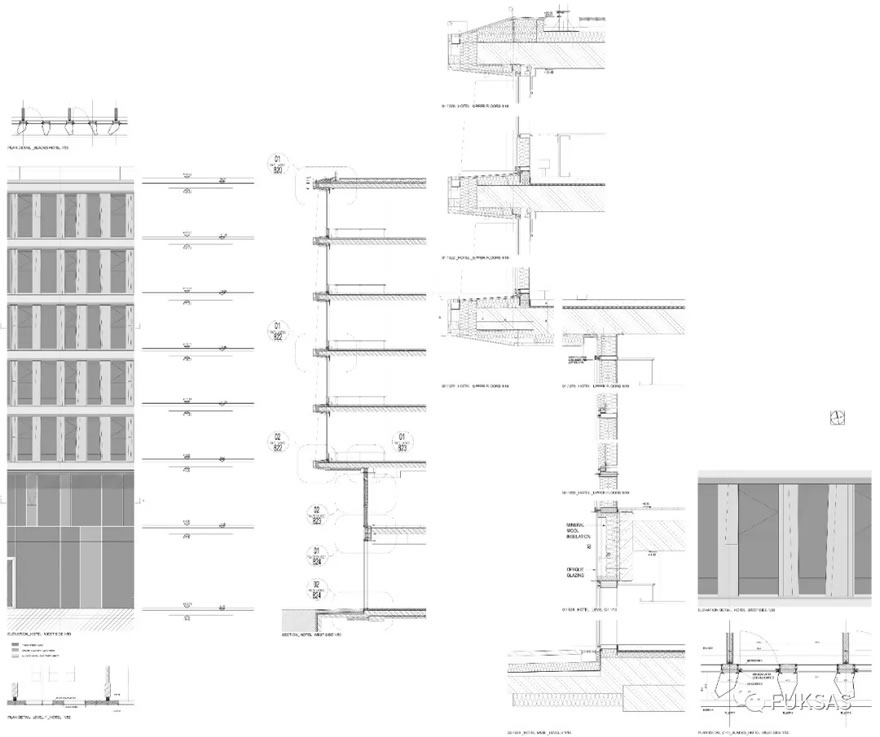

立面细节 Details of facades


更多资讯请点击下方阅读原文链接 | For more info, please click read more below
