建筑团队  许轶,王文娟,顾沈平,邱雅菲,詹猛

设计单位  上海瑞实建筑设计有限公司

项目面积  1000㎡

项目地点  安吉县天荒坪镇大溪村曹家坞45号 ,古银杏树下

建设状态  建成

Key words:

The wholeprocess of design and operation,localization innovation,Oriental aesthetics,heritage


全过程设计和运营  遗产  本土化创新  东方审美


This project is anlocalization realization which was initiated, designed, invested, constructed, and operated byanarchitects’ team. The content of the design includesarchitecture, landscape, interior, and even customized furniture and lighting.



Heritage 传承


In MIRACLE LAND boutique hotel, there is an old wooden house with ahistory of more than 60 years. Although it is not a famous conservation building, these oldhouses are disappearing heritage for the rapidly developing northern Zhejiangvillage. If they can be selectively renovated and utilized, they will leave arepresentative cultural and historical mark. Architect hope that after therenovation of this building, people can see the past, feel the innovation andintegrate into the surrounding environment.


在MIRACLE LAND 迈岚精品酒店中,有一栋60多年历史的老木房子,虽然不是什么著名保护建筑,但是对于快速发展的浙北山村,这些老屋就是正在消失中的遗产,如果能够选择性的修护利用,就是留下了具有代表性的文化和历史印记。建筑师希望这个建筑改造后,既能看见过去,也能感受创新,并能够融入周边的环境。

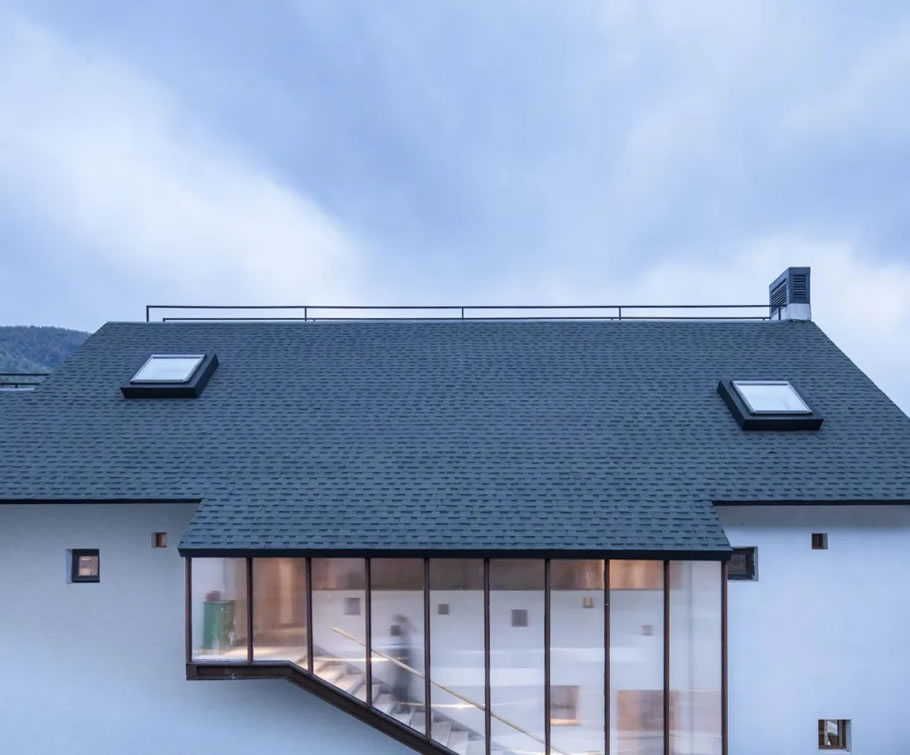

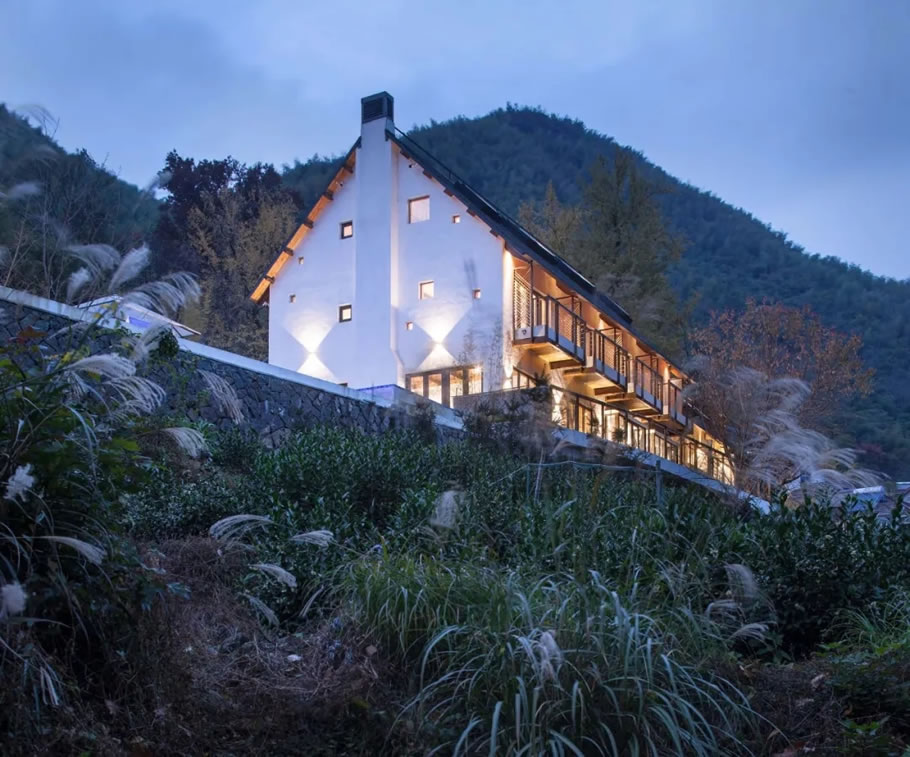

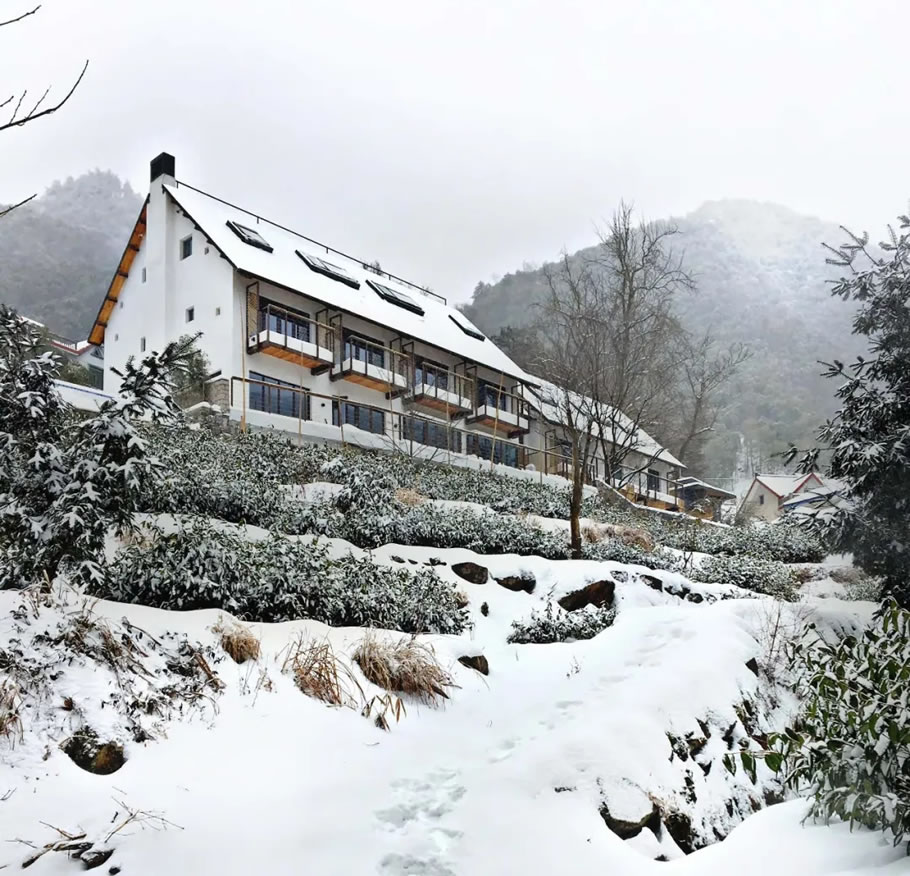

Project is located in the Zhejiang mountains, more than 700 meters abovesea level, with thick snow in winter, the natural environment is more like thealpine village. Therefore, when the roof was repaired, a 1:1 steep slope wasadopted to adapt to the climate here. At the same time, they cut off thetop of the roof ridge and lowered the height again to reduce the impact on theperipheral vision. In addition, it obtained a roof ridge maintenance channel,which can even be used for climbing to watch birds. At the end of the roof ridgeis the fireplace chimney, in winter, people will light the fire, ready to meet theheaviest snow in south.







The dignityof the old house 老屋的尊严

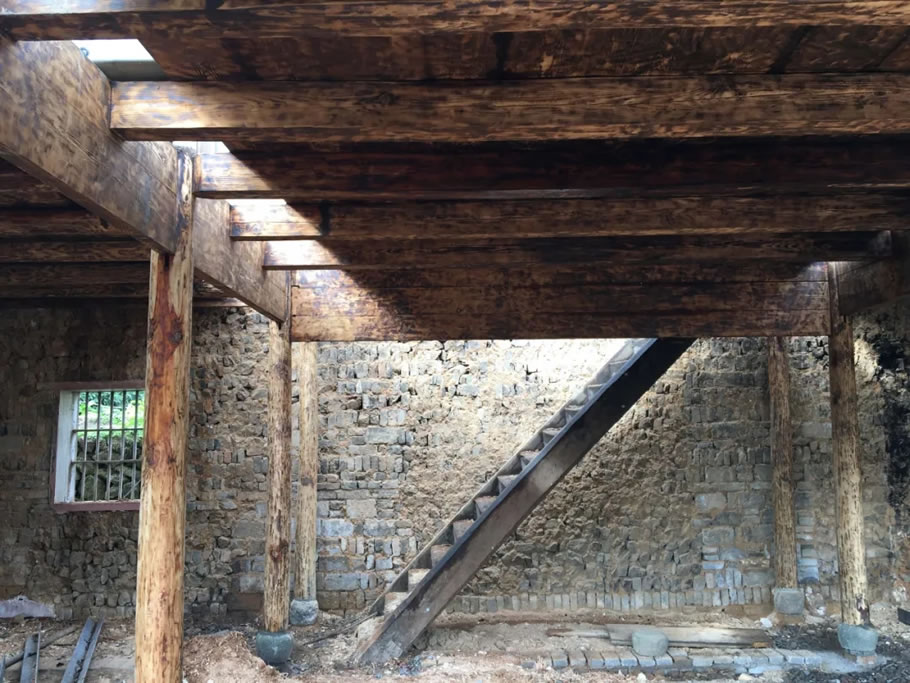

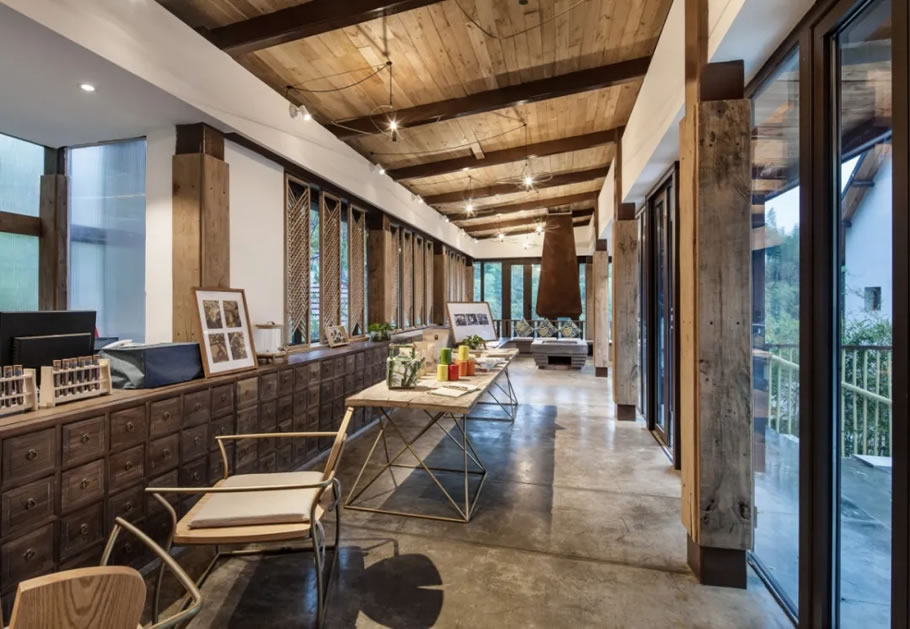

 Architects take the old wooden house as a living lifeto transform, let him have dignity, so they try to make its structure become the realmeaning of the structure and not just decoration. In the project, the entirewooden structure was elevated and the foundation was strengthened. Theabove-ground part is strengthened with new steel cage column, which supportsthe position of the coaxial line of the log structure, rather than buildinganother one off the original axis, giving full play to the complementarystructural and aesthetic advantages of steel and wood. In the interior, thesecondary old wooden structure is retained as the fixed function of thepartition wall as far as possible. The old house is like an old man who hasgone through wind and rain. He has acquired a new pair of young bones and cantake on a new mission.

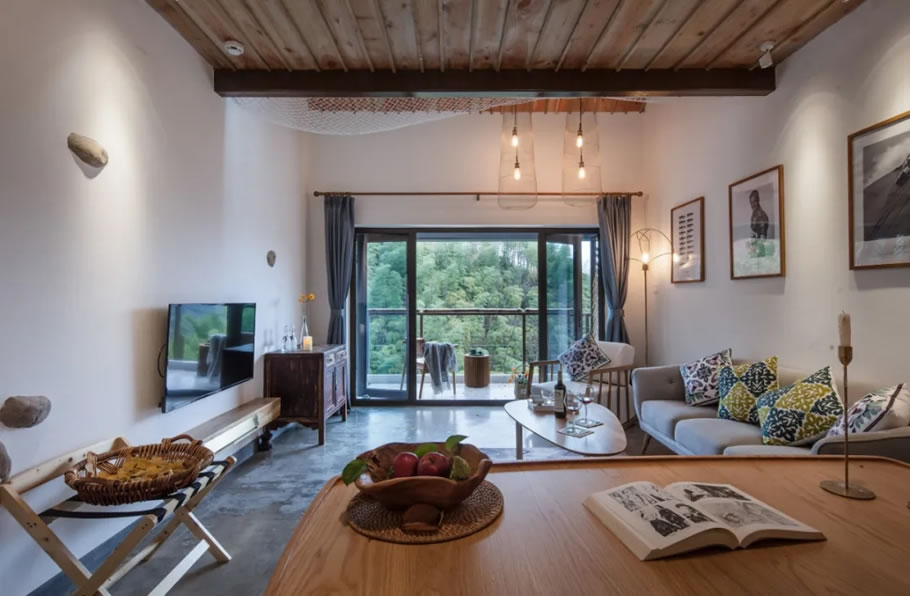

The use of old wood, on the one hand toreduce the transport and waste of wood, on the other hand to reduce the use ofadhesives and other chemicals. In addition to the replacement from repairing houses, all kinds of old wood were also added inthe near the old timber market, due to the material use, such as: solid cedarwood railing, nice texture old cassia for lounge,  redmaple and whitemaplefor table plate, moderate strains wood for making cabinet, old fir wood door  for transformed tobe new door, resistance todeformation resisting old elm forheat preservationof steel column, and so on.Although old wood has a lot of blemish and the difficulty on processing, butthose natural chromatic aberration, the crack of time, function carve... Let aperson feel the truth and story of wood.




Mark the everlastinglove with thesea stone 天荒地老的爱,海枯石烂的墙

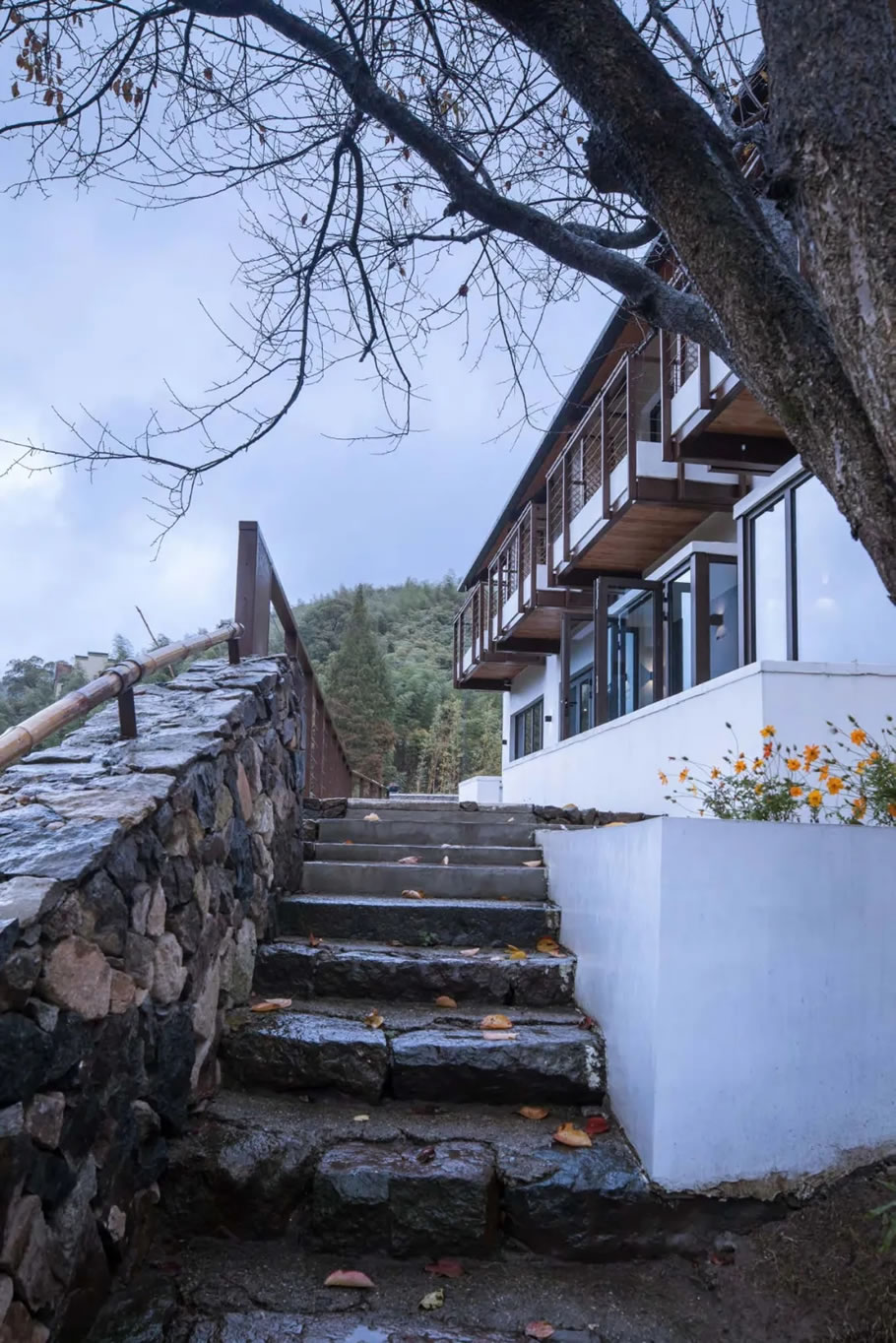

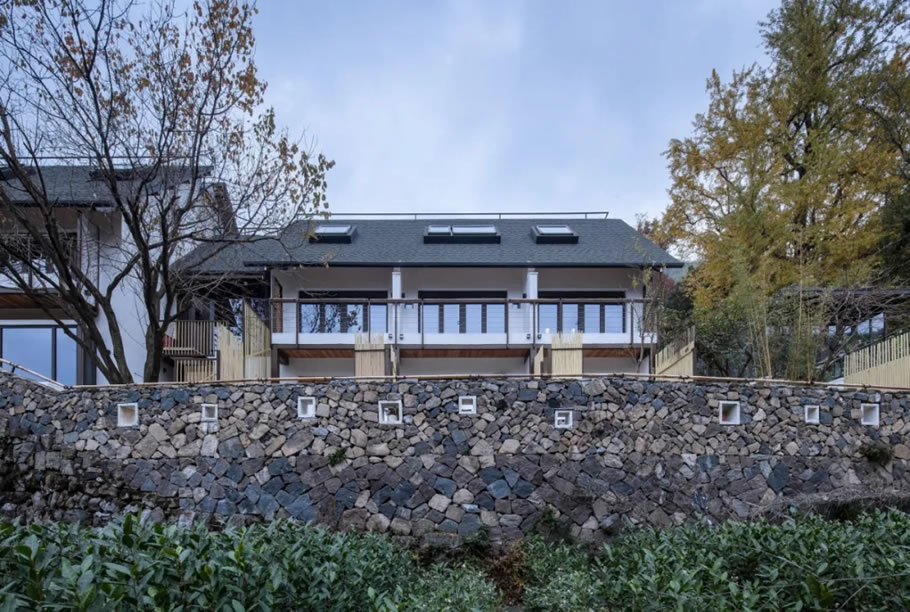

Due to transportation difficulties,construction must be "low-carbon construction" from the beginning --local materials. Designers and workers digger out the stone s and classifiedthem: large for landscape, medium for foundation, small for cushion, squareshape for wall, circle shape for decoration.

The circular stone excavated proves thatthe orogenic movement turned this place from river and sea into a big mountain.Architects choose fruity stone material, mixed them in the wall and masonrythem to be window frame. By showing these everlasting stone when thousandsyears have passed to commemorate and bless the love.

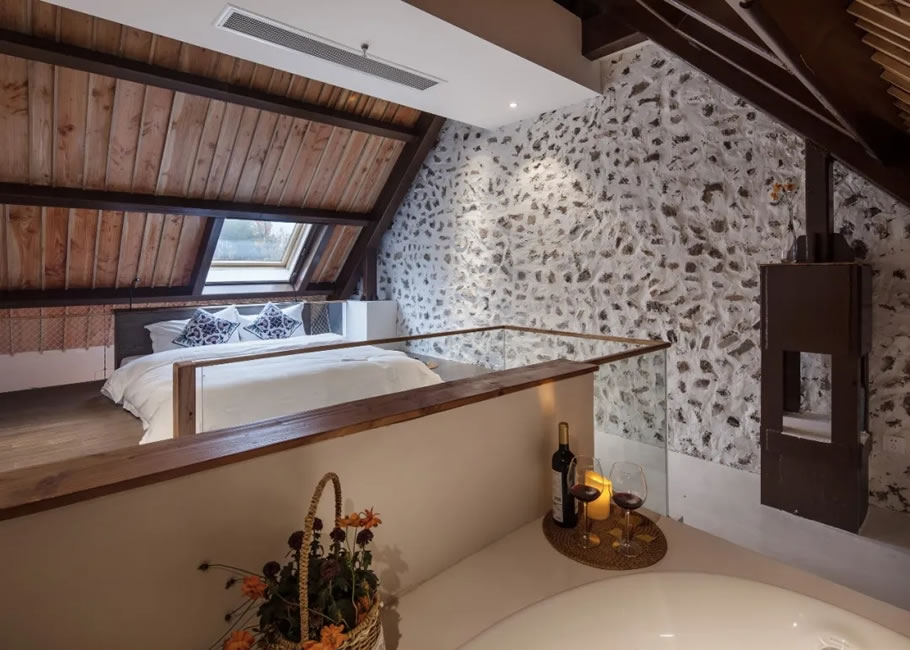

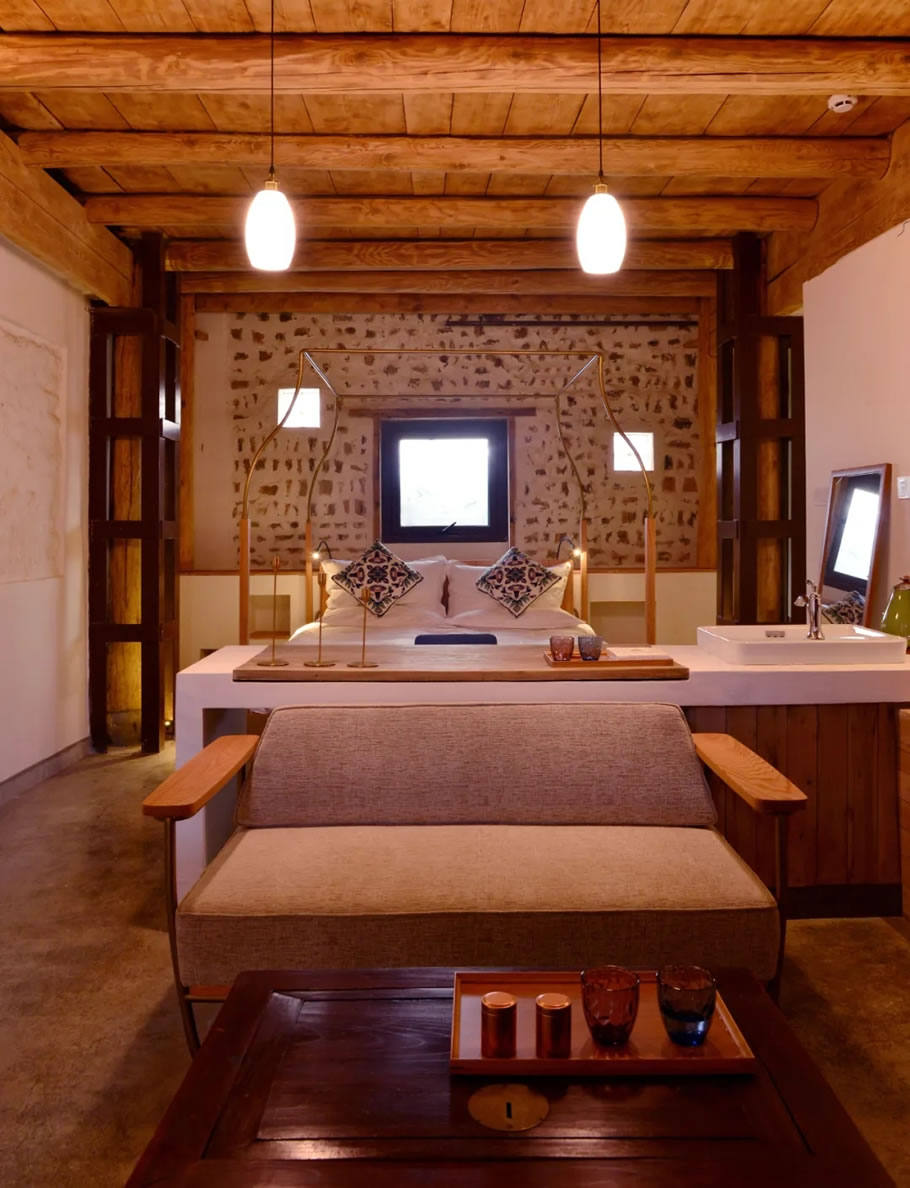

The old wall had been cemented togetherwith local stones and mud. After dozens of experiments with local workers, thedesigner finally strengthened the stone walls with a reliable cement mortarformula, and retained the original stone mechanism to the maximum. The stonefeels like being buried in snow, making people feel warm.






Lighting andfurniture 灯具和家具

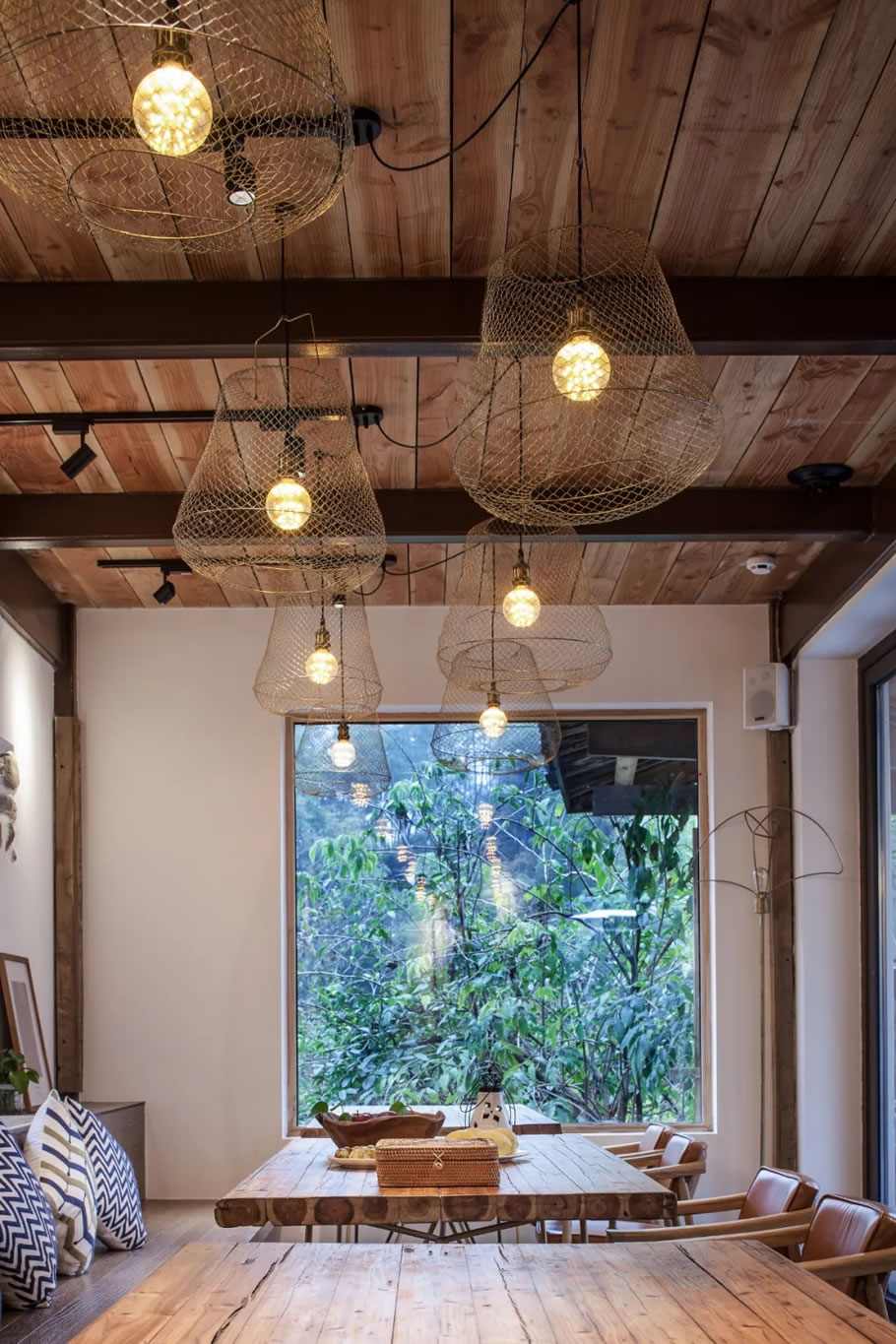

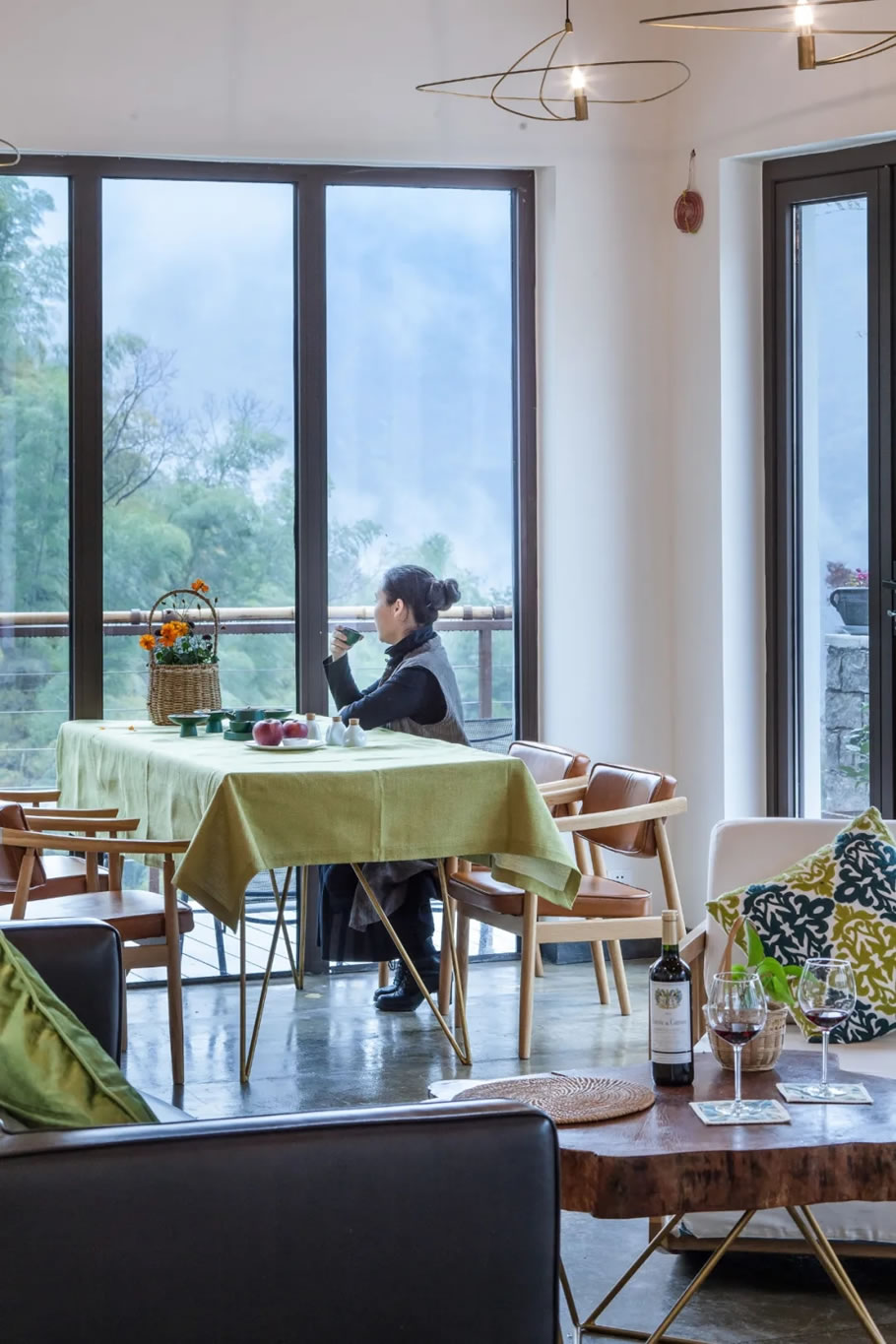

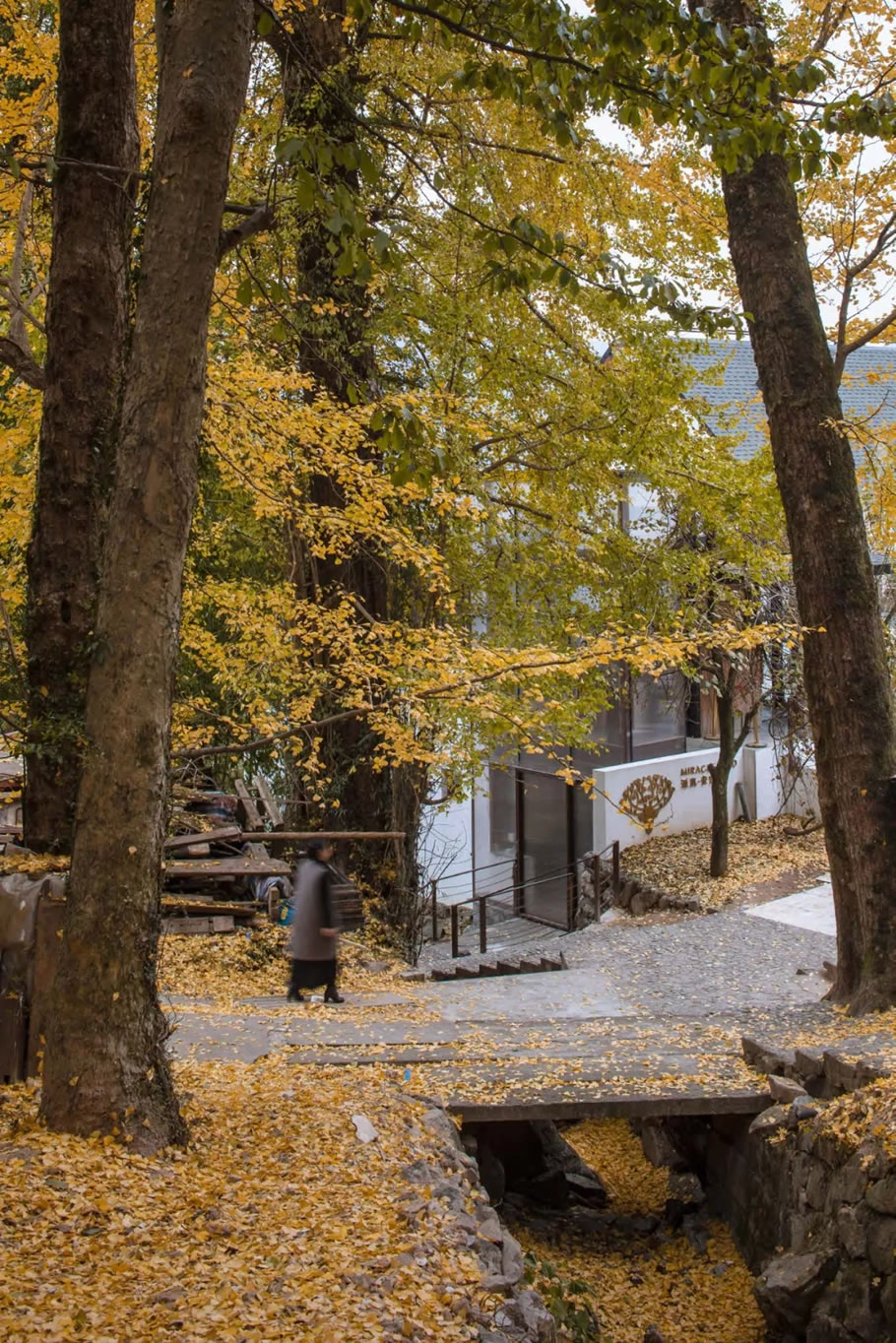

It is the ancient ginkgo trees with flyinggolden leaves that lead us to find this beautiful place. Therefore, inthe design, the theme of ginkgo is integrated into lamps and furniture. I hopethis luck can be transferred to every space. These hand-made copper lamps andfurniture, with some unique curves,  showthe elegance and unrestrained art of the Oriental aesthetic.






We hope that busy urbanites can hide in this old house that infuses new life in the gap between the hustle and bustle of life, watch a piece of gingko falling from the branches, drink a cup of dense white tea, touch the texture of a piece of wood, and experience this beautiful heritage.














项目地址:安吉县天荒坪镇大溪村曹家坞45号 ,古银杏树下
