德国 robatherm 新总部 | HENN 海茵建筑
阅读:1742 2023-11-22

© Simon Menges

robatherm 位于 Jettingen-Scheppach 的新总部对现有的空气处理机组生产设施进行了扩充。从远处就可以看到位于慕尼黑-斯图加特高速公路旁的这座重要的新建筑。它为 200 名工程师和在那里工作的管理人员提供展厅、餐厅和会议设施。

robatherm’s new head office in Jettingen-Scheppach adds to the existing production facility for air handling units. The significant new building located alongside the Munich-Stuttgart motorway can be seen from afar. It provides showrooms, a restaurant and conference facilities for the 200 engineers and the management working there.

© Simon Menges

© Simon Menges

© Simon Menges

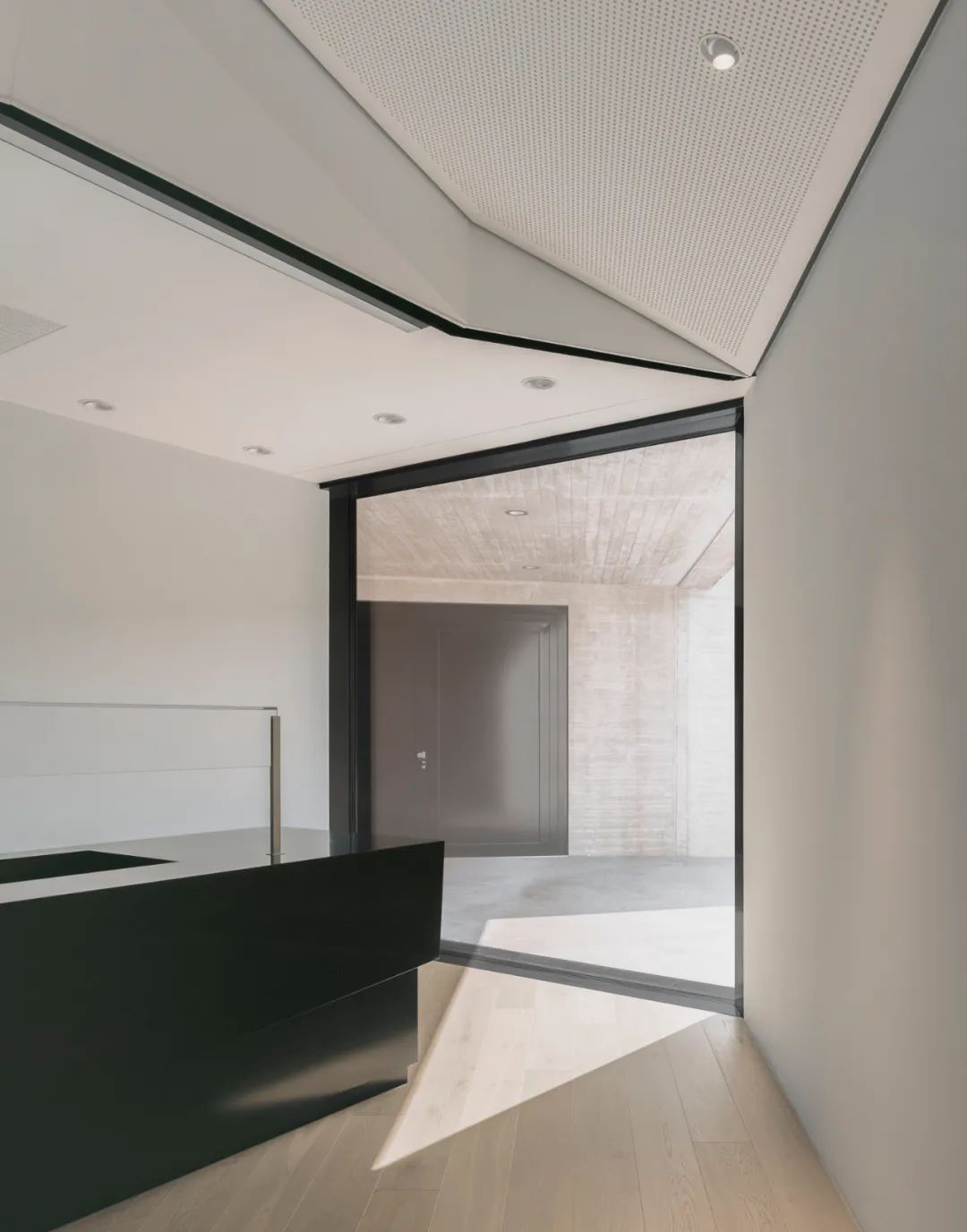

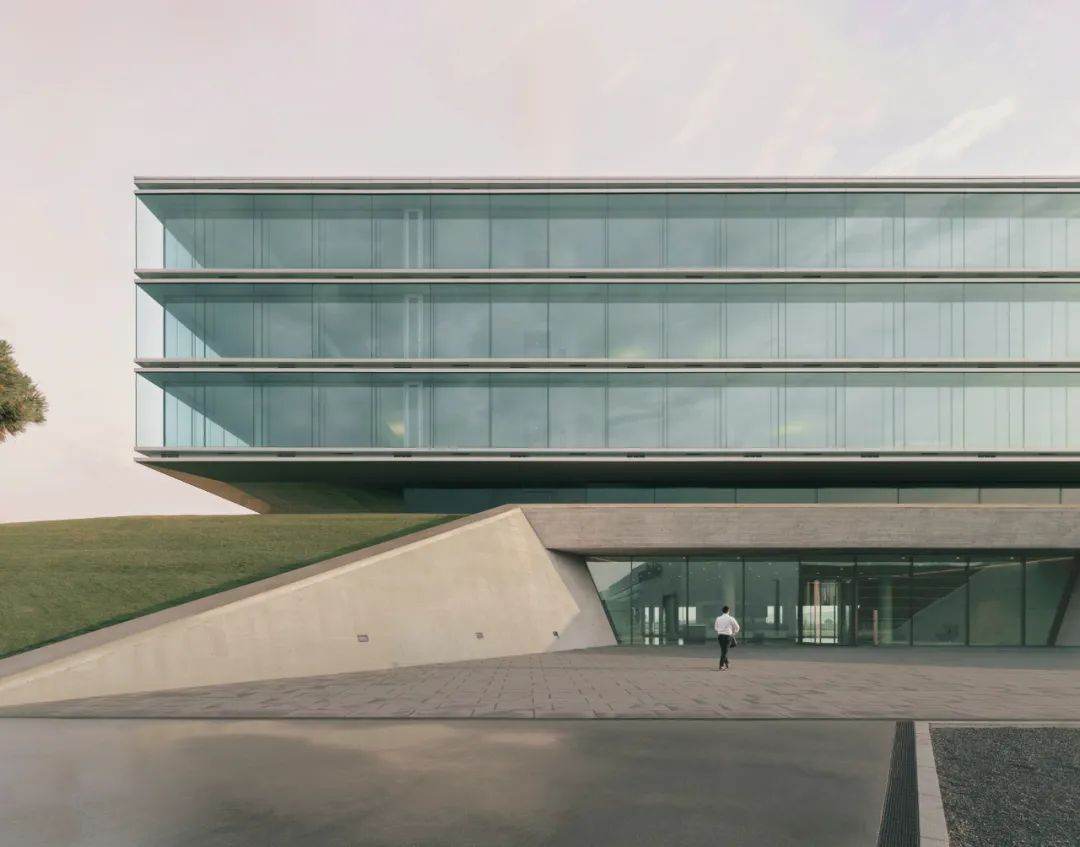

该场地位于 A8 公路旁,其独特的设计为开车经过该建筑时的人们留下深刻的印象。建筑底层设置在绿色隔音路堤中,将公司场地固定在朝向高速公路的位置。场地的一个切口通向接待处。从这里可以到达展览空间、陈列室、技术室和员工餐厅。

The site’s location alongside the A8 and the perception of the building when driving past it, are of particular relevance for the design. The ground floor has been set into the green sound insulation embankment which confines the company’s grounds towards the motorway. An incision in the compound leads toward the reception. From here an exhibition space, showrooms, technical rooms, and the staff restaurant can be reached.

© Simon Menges

© Simon Menges

© Simon Menges

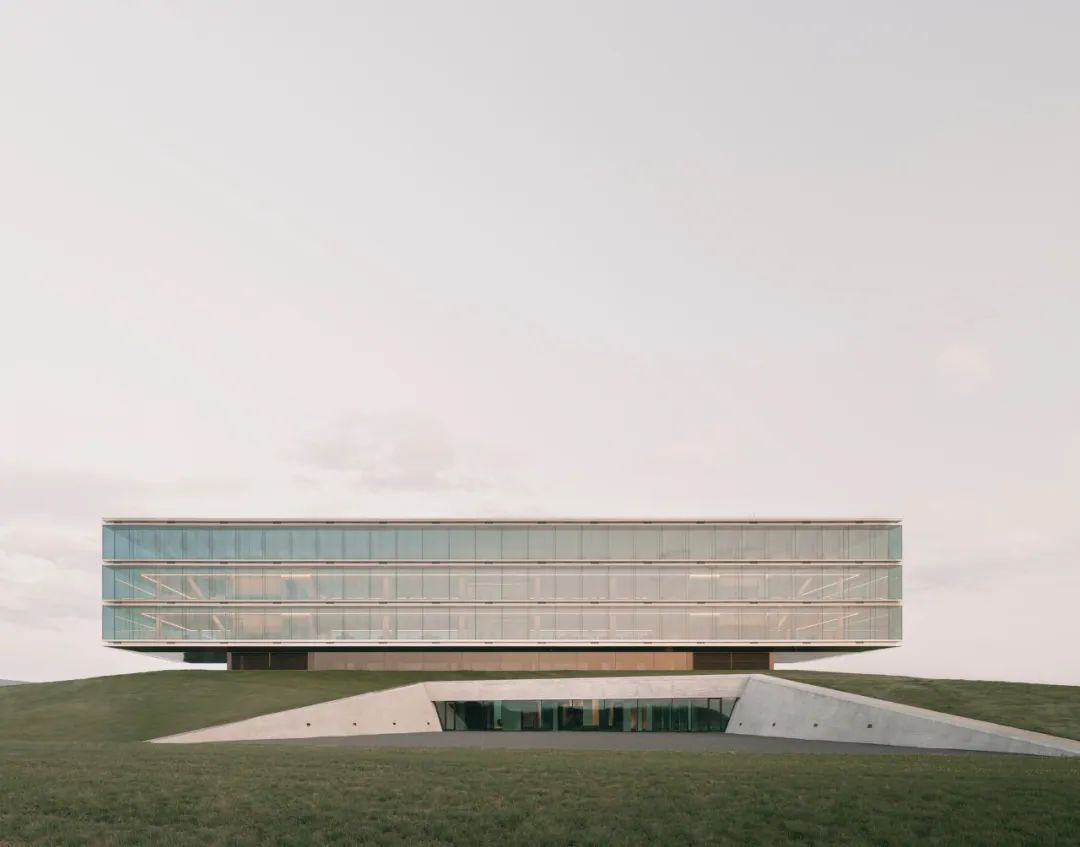

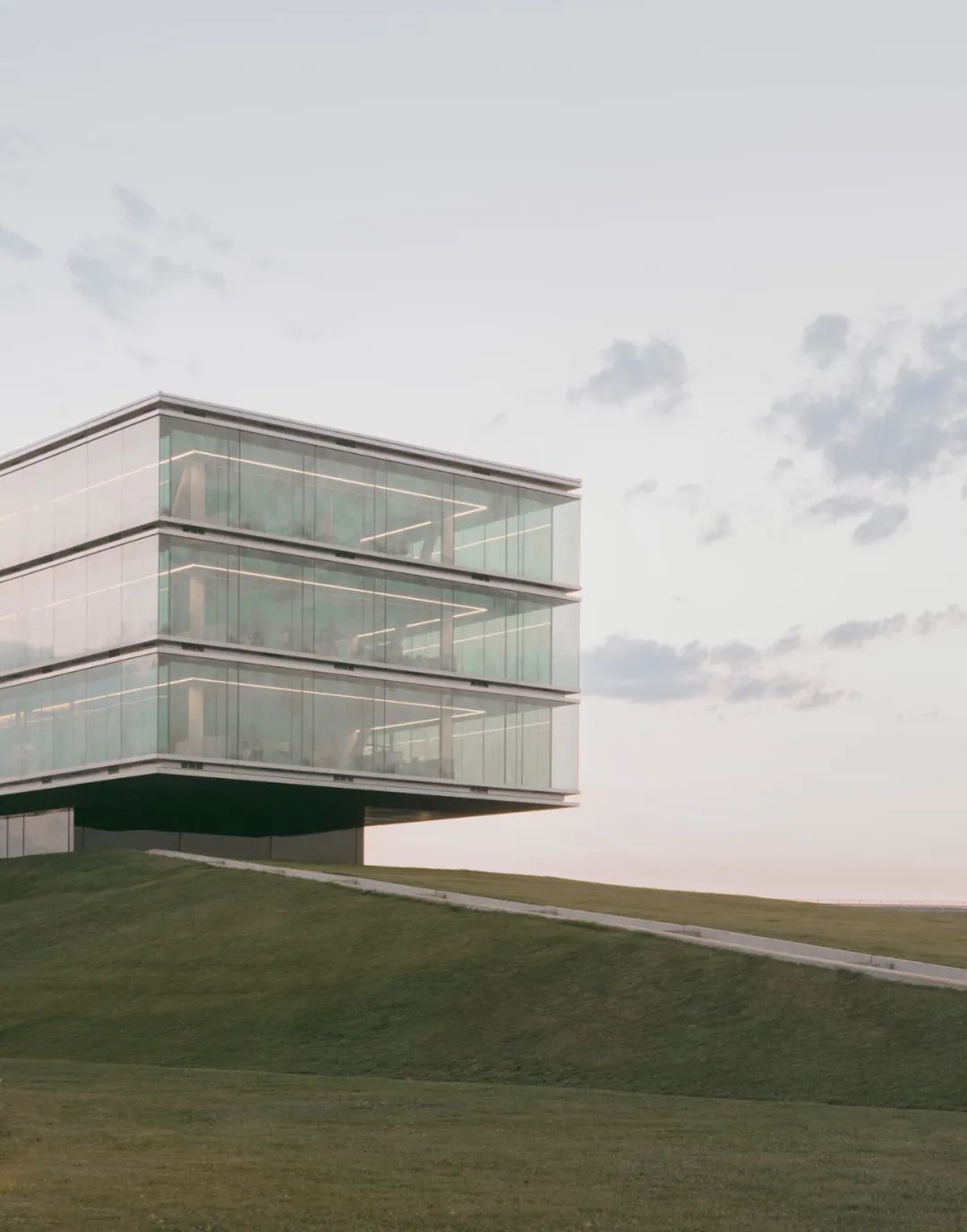

由折叠钢制成的倾斜墙壁和天花板是外观的主要特色。上方的会议层明显后退,使这座100米长的三层办公大楼远远地突出,似乎漂浮在空中。

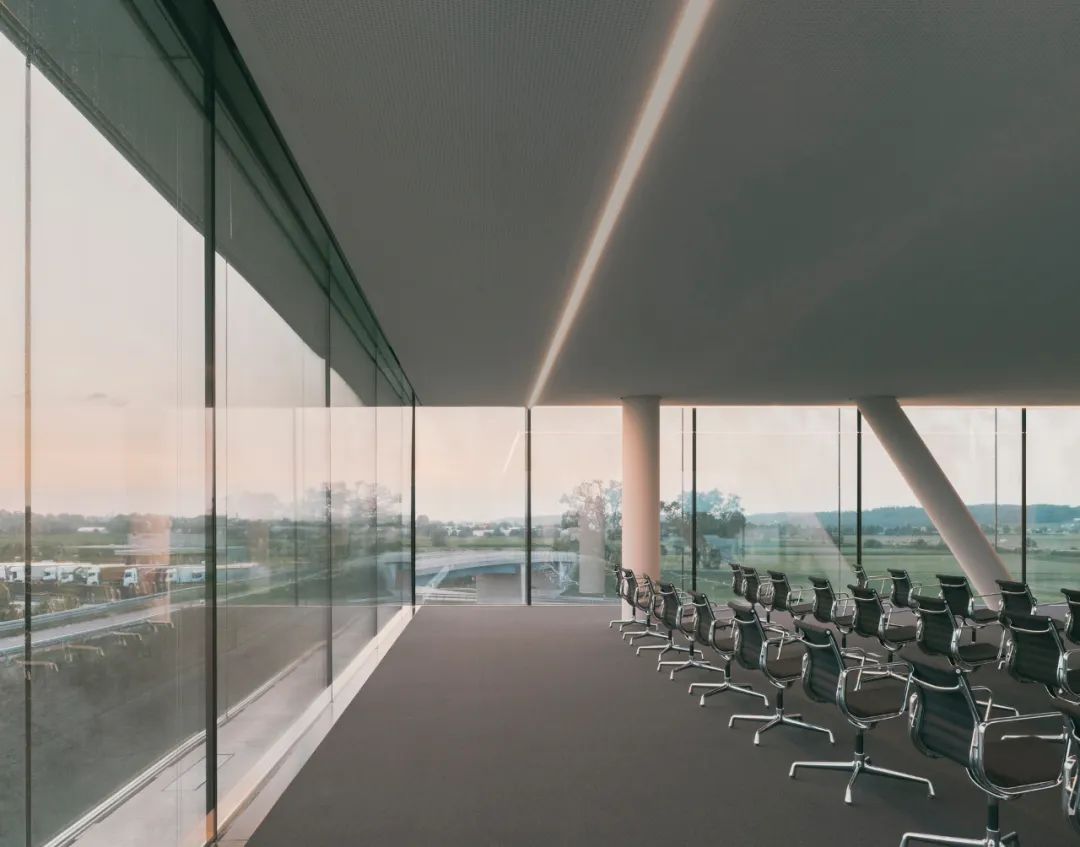

Inclined walls and ceilings made of folded steel define the appearance here. The conference level above is set back distinctly so that the 100-metres long, three-storey office block protrudes far out, seeming to float.

© Simon Menges

© Simon Menges

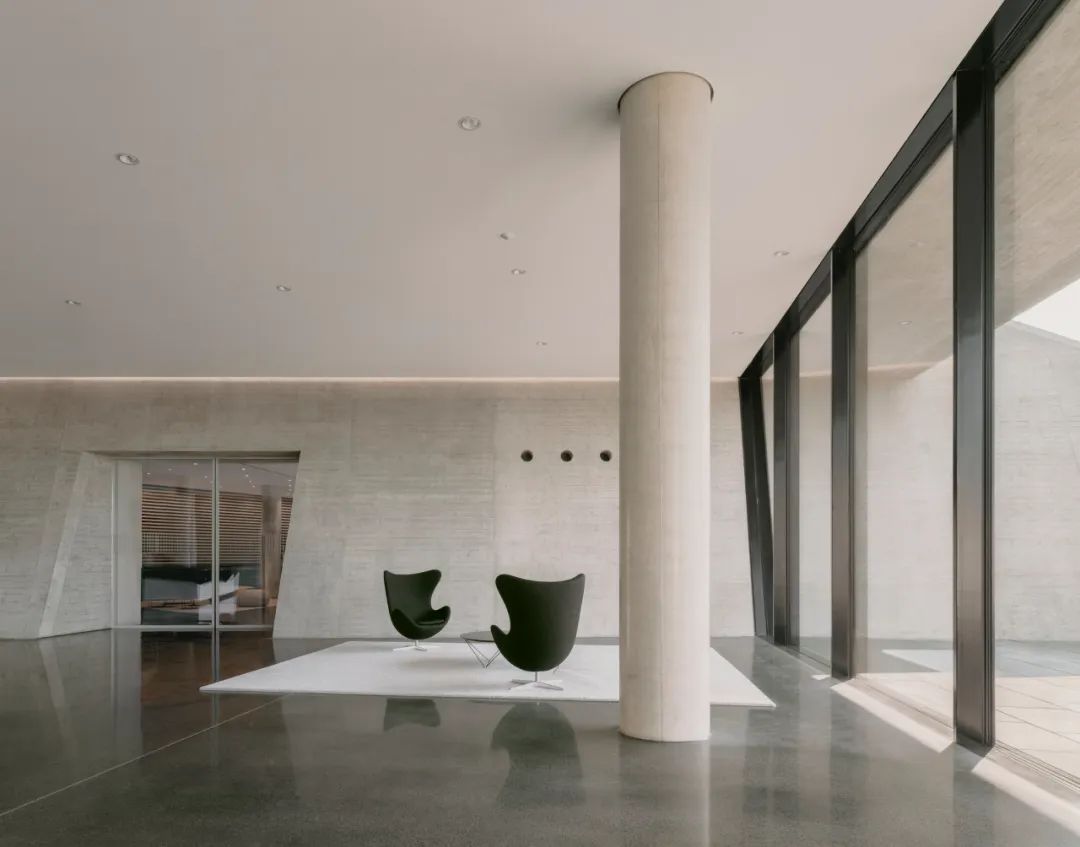

裸露的混凝土、精密钢带优雅地勾勒出各个层次的轮廓,为全玻璃幕墙带来品质感。位于两个核心筒上,横跨多层的对角压力杆承受来自突出结构的载荷。

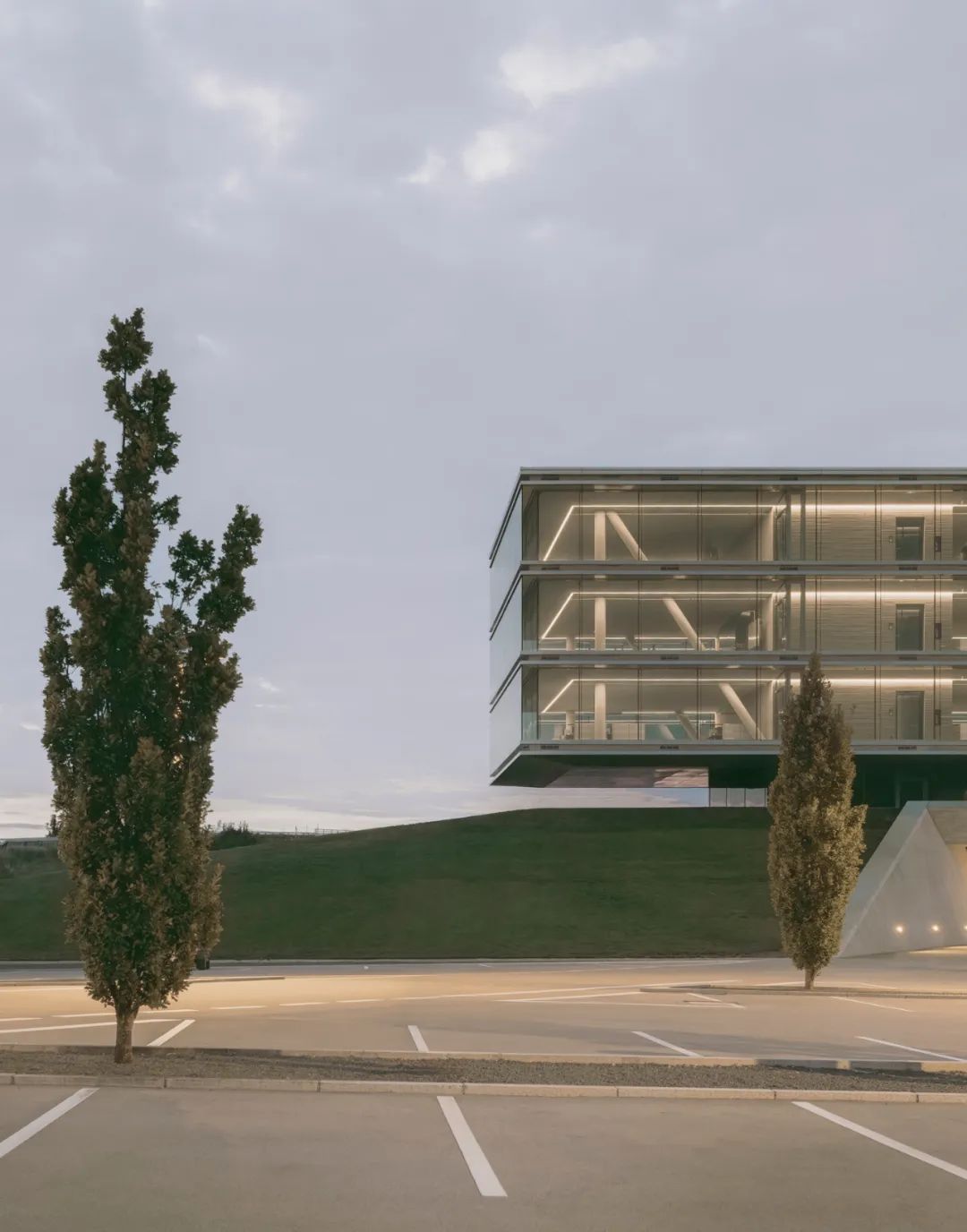

Exposed concrete, precision strip steel with elegant reveals contour all levels, giving a quality feel to the all-glass facades. Diagonal pressure rods that span across multiple storeys on both cores carry the loads from the projecting structure.

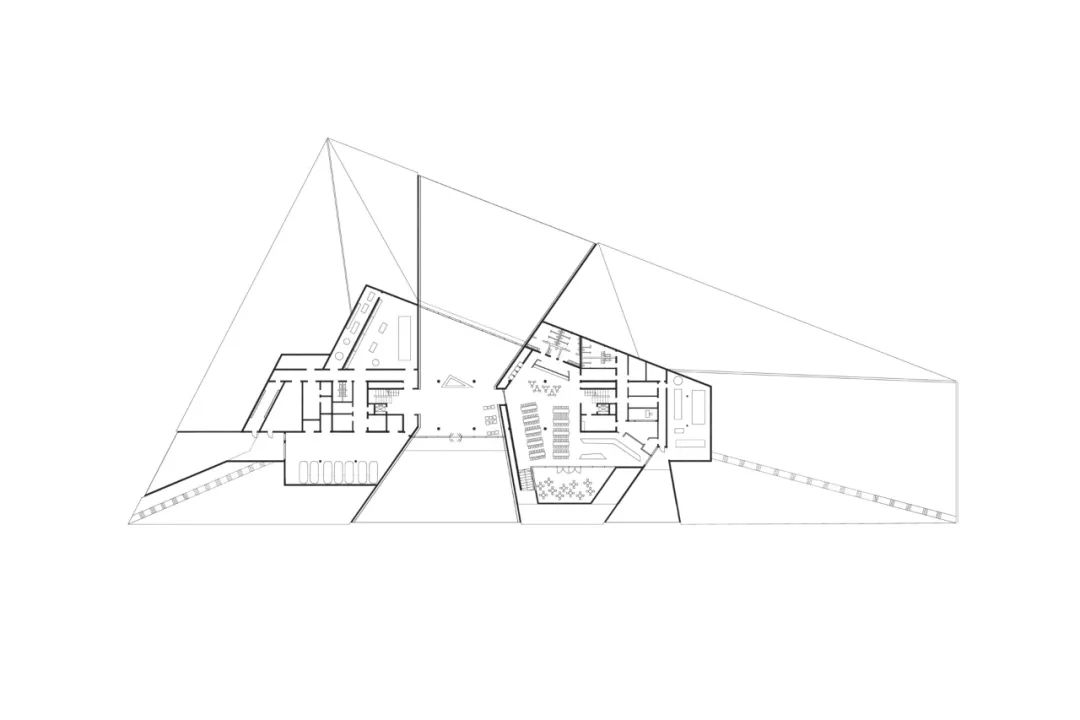

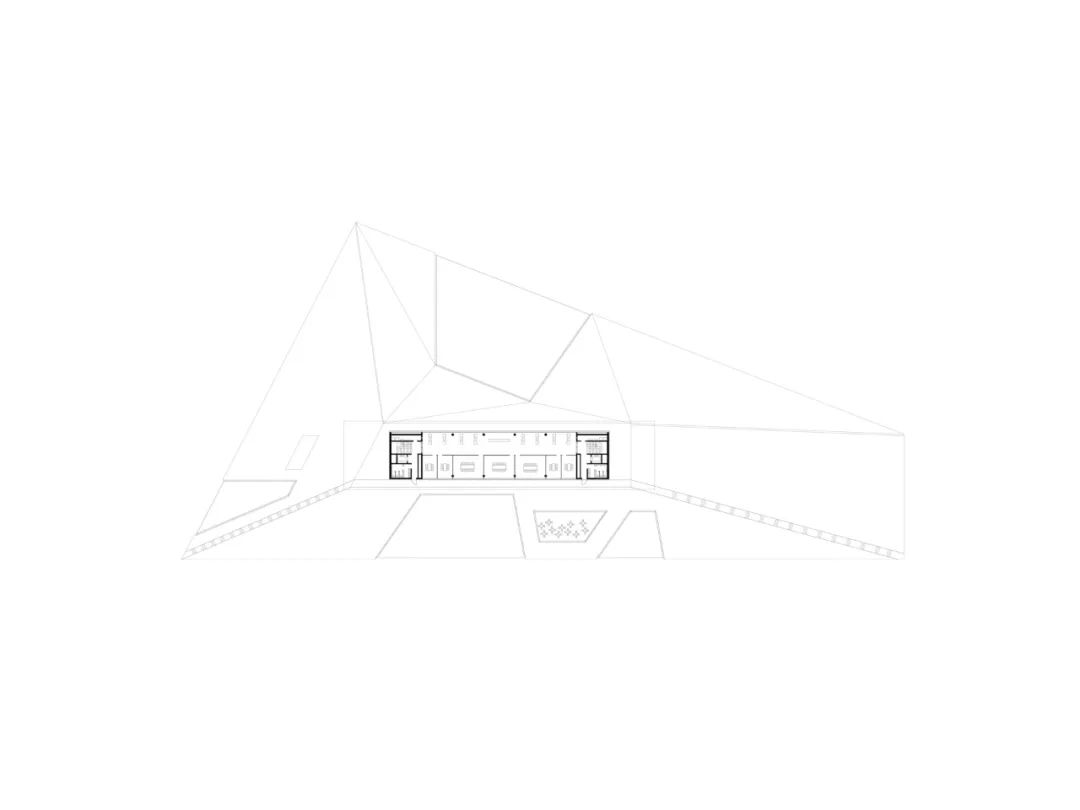

首层平面

一层平面

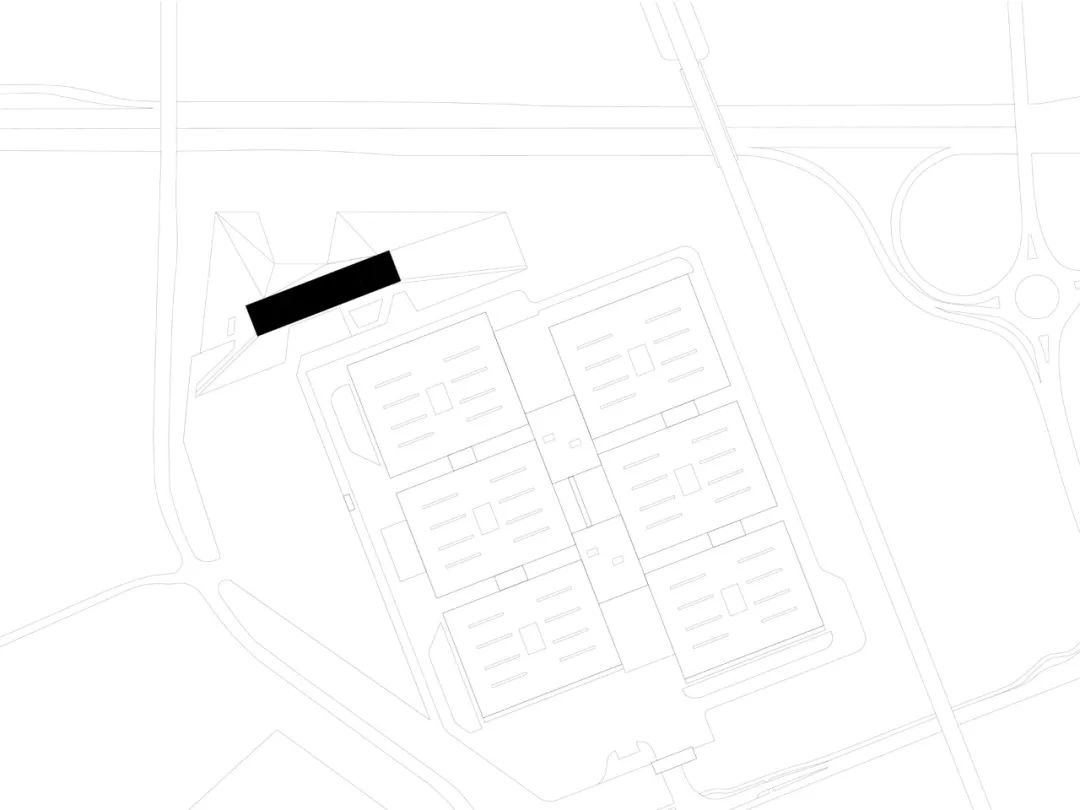

场地平面

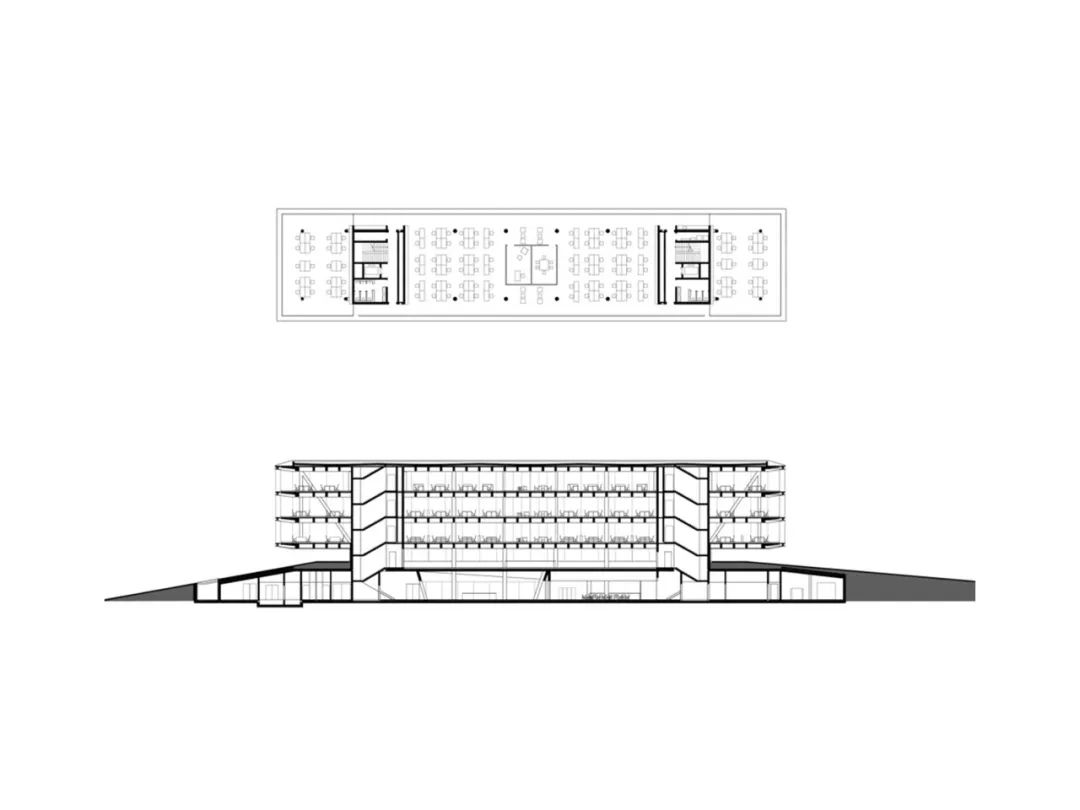

剖面

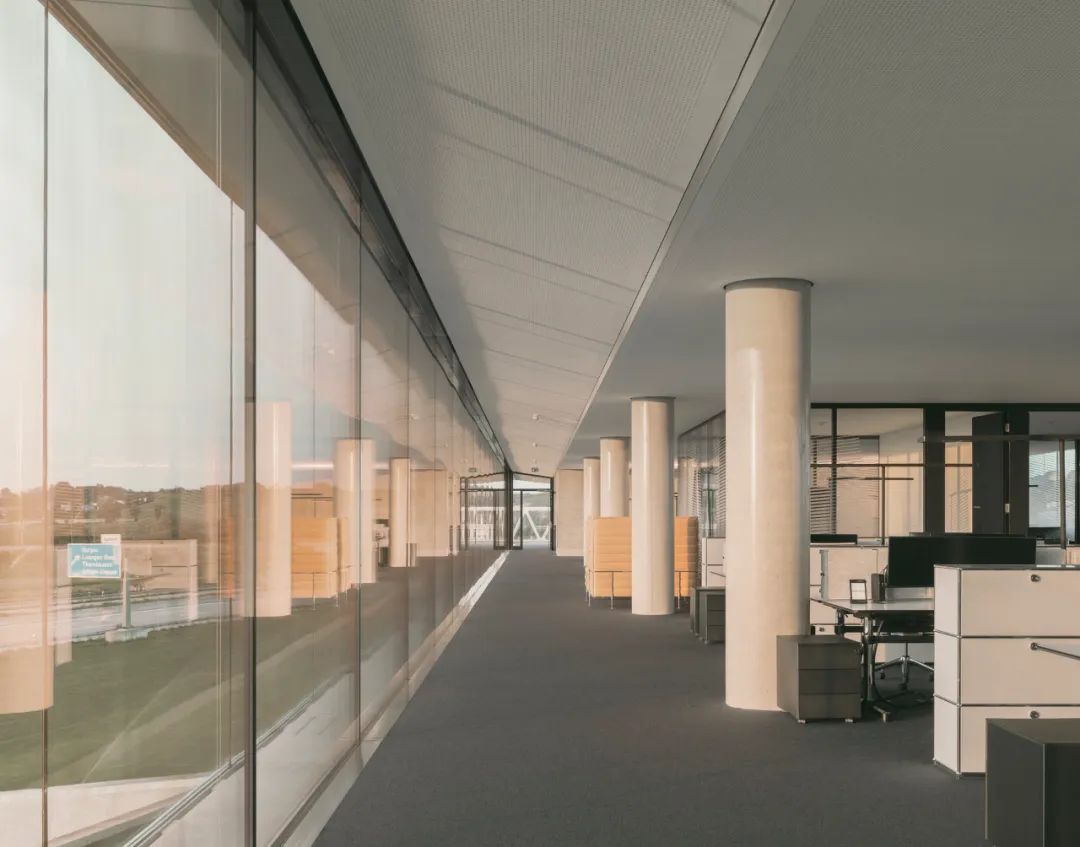

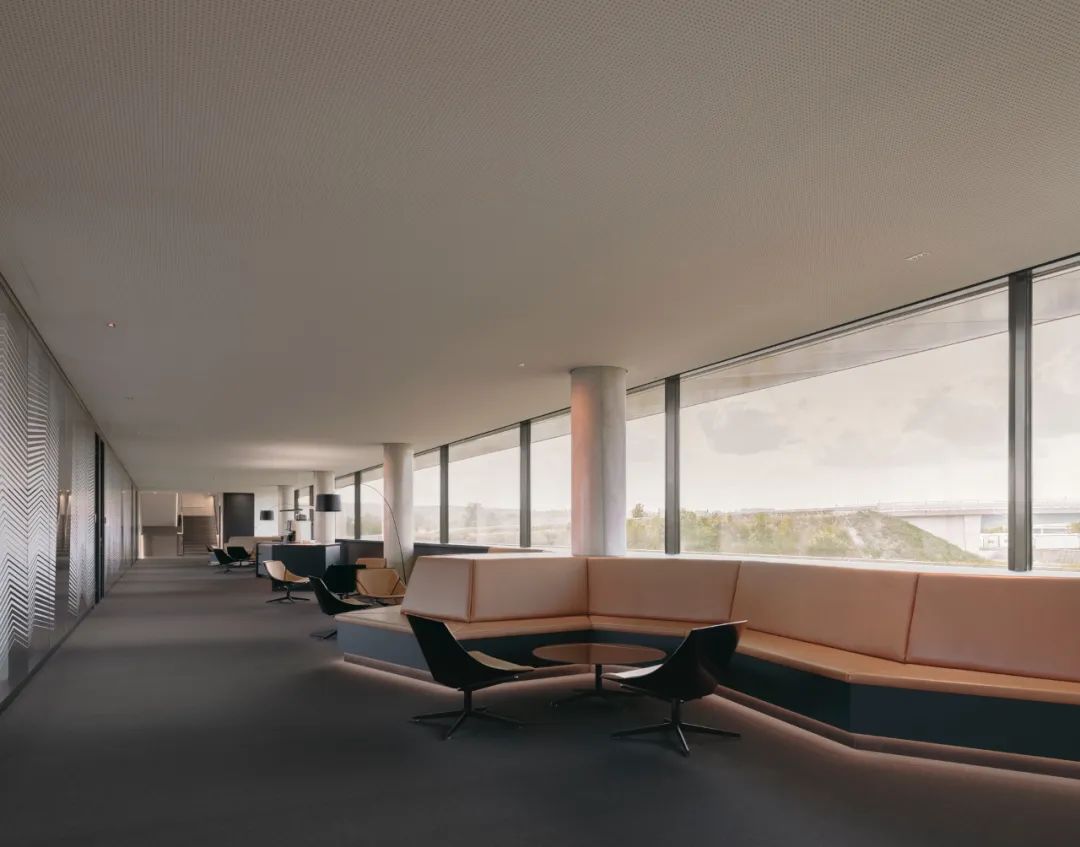

这个开放、无支撑的办公楼层充满了来自多个方向的日光。双层立面将施瓦本阿尔卑斯山的景色尽收眼底。地处高位的这座新总部的美感让参观者和驾车经过的人都能对 robatherm 在这里进行的优质生产工程一目了然。

The open, unsupported office floors are flooded with daylight coming in from multiple directions. The double-skin facades direct the view all the way to the Swabian Alps. The high aesthetic claim of the company’s new head office gives visitors and those driving past an idea of the quality engineering produced here by robatherm.

项目信息:

项目面积:7500 m²

业主:robatherm

项目进程:已完工

完成时间:2019年

合作伙伴:
